30 Packs Per Minute Fully Automatic Wrap Around Case Packer with 380V 50Hz Power for Beverage and Food Packaging

30 Packs Per Minute Fully Automatic Wrap Around Case Packer with 380V 50Hz Power for Beverage and Food Packaging

30 Packs Per Minute Wrap Around Case Packer

380V 50Hz Case Packing Machine

Fully Automatic Cardboard Wraparound Case Packer

Contact Us
Request A Quote
30 Packs Per Minute Fully Automatic Wrap Around Case Packer with 380V 50Hz Power for Beverage and Food Packaging 30 Packs Per Minute Fully Automatic Wrap Around Case Packer with 380V 50Hz Power for Beverage and Food Packaging 30 Packs Per Minute Fully Automatic Wrap Around Case Packer with 380V 50Hz Power for Beverage and Food Packaging 30 Packs Per Minute Fully Automatic Wrap Around Case Packer with 380V 50Hz Power for Beverage and Food Packaging 30 Packs Per Minute Fully Automatic Wrap Around Case Packer with 380V 50Hz Power for Beverage and Food Packaging 30 Packs Per Minute Fully Automatic Wrap Around Case Packer with 380V 50Hz Power for Beverage and Food Packaging
Product Details
Capacity:
20-100 Packs/Minute
Power:
380V 50Hz
Container Size:
100g-3kg
Production Capacity:
500 Sets/Year
Equipment Size:
15850mm×4050mm×2150mm
Box Elevation:
1350mm±30mm
Bottle Elevation:
1350mm±30mm
Equipment Weight:
11000Kg
Operating Air Pressure:
6bar
Air Consumption:
160L/min Max
Working Voltage:
380V AC 50HZ
Control Voltage:
24V DC/AC
Installed Power:
30KW
Operating Power:
20KW
Bottle Height:
95mm~330mm
Highlight:

30 Packs Per Minute Wrap Around Case Packer

,

380V 50Hz Case Packing Machine

,

Fully Automatic Cardboard Wraparound Case Packer

Payment & Shipping Terms
Minimum Order Quantity
1
Price
60000
RELATED PRODUCTS
Good price 60 Packs Per Minute Fully Wrapped Winding No Pallet Wrap Around Case Packer for Beverage and Food online

60 Packs Per Minute Fully Wrapped Winding No Pallet Wrap Around Case Packer for Beverage and Food

Get Best Price
Good price Automatic Wrap Around Carton Case Packer with 25 Cases/minute Speed, Stainless Steel 304 Construction, and AC 380V Power online

Automatic Wrap Around Carton Case Packer with 25 Cases/minute Speed, Stainless Steel 304 Construction, and AC 380V Power

Get Best Price
Good price CE ISO Certified Automatic Wrap Around Case Packer with Schneider Electrics for Stable Performance in Carton Packaging online

CE ISO Certified Automatic Wrap Around Case Packer with Schneider Electrics for Stable Performance in Carton Packaging

Get Best Price
Good price Stable Performance CE ISO Certified Wrap Around Case Packer with Touch Screen Control for Bottles Jars Cans online

Stable Performance CE ISO Certified Wrap Around Case Packer with Touch Screen Control for Bottles Jars Cans

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
30 Packs Per Minute Side Feeding Wide Edge Cardboard Wraparound Case Packer
Product Overview
Applicable bottle types: square bottles, flat bottles, round bottles. This machine is widely used for secondary packaging of PET bottles, glass bottles or metal cans, and can replace cartoning machines and their ancillary equipment.
Key Specifications
  • Production capacity: 35-100 packs per minute (depending on packaging specifications)
  • Also known as: Carton Packer, Case Packer, Wrap Around Packer, One-piece carton packaging machine
Main Components Configuration
Component Brand
PLC Inovance, China
Servo motor and control system Inovance, China
Upper configuration software Ab Optix
Frequency converter Inovance, China
Proximity electronic switch SICK or equivalent brand
Air switch Equivalent brand
Technical Parameters
Parameter Value
Production capacity 80 packs/minute (depending on bottle type and packaging method)
Carton dimensions (L×W×H) L: 150-420mm, W: 130-350mm, H: 100-335mm
Product diameter φ52-106mm (differential machines) or φ48mm (non-differential)
Product height 95-330mm
Equipment dimensions (L×W×H) 15850×4050×2150mm
Equipment weight 11000Kg
Operating power 30KW (installed), 20KW (operating)
Carton Folding Process

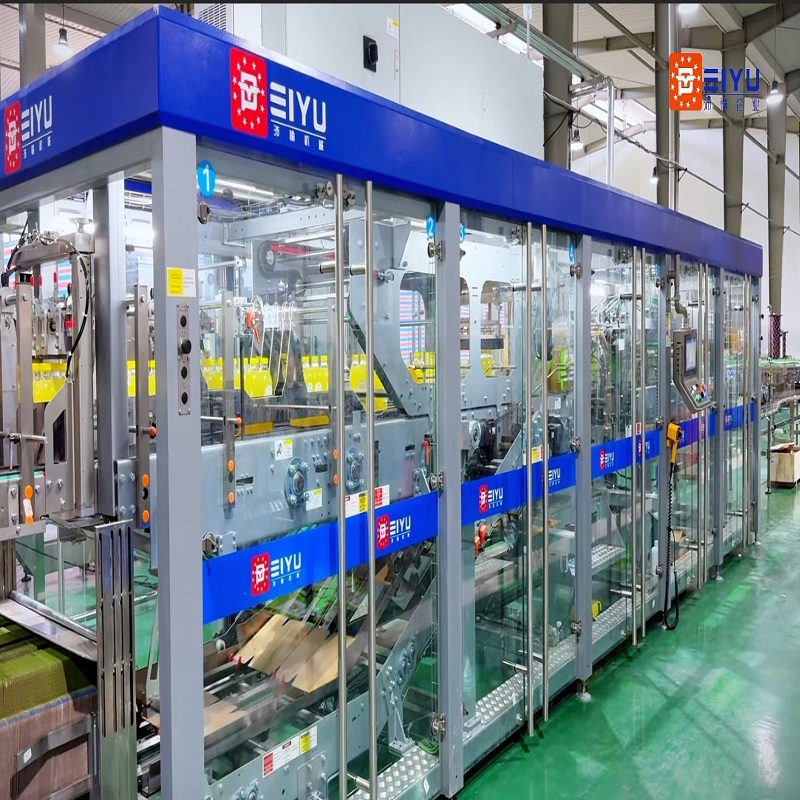

30 Packs Per Minute Fully Automatic Wrap Around Case Packer with 380V 50Hz Power for Beverage and Food Packaging 0

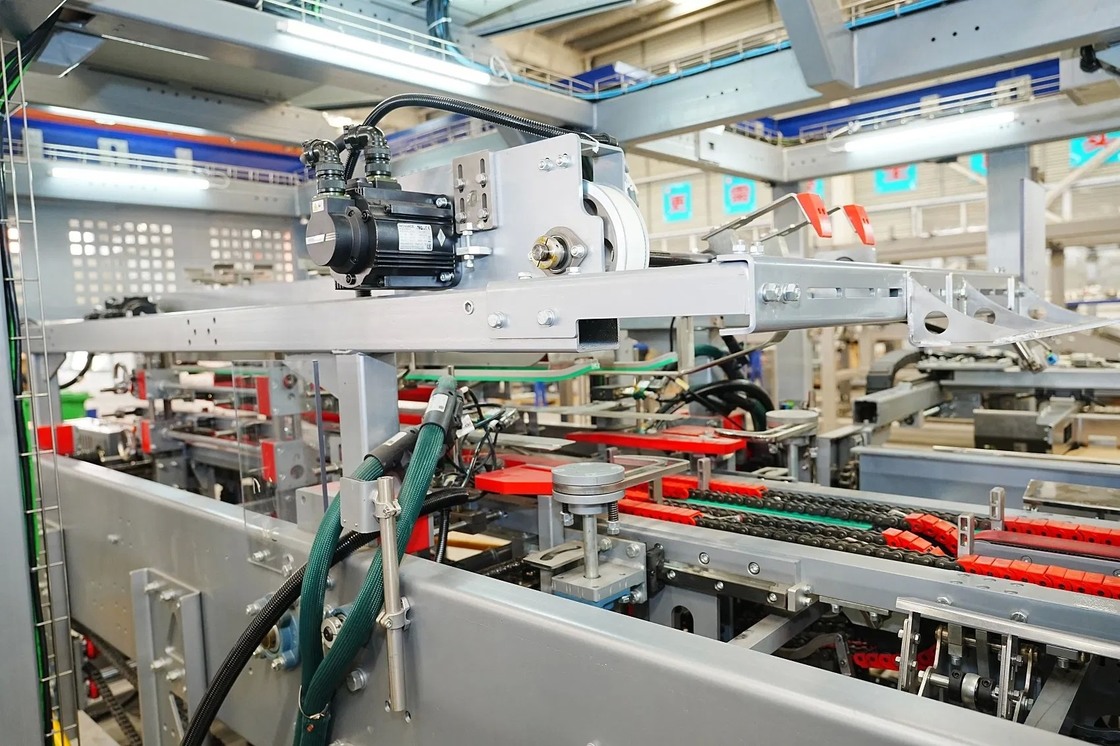

30 Packs Per Minute Fully Automatic Wrap Around Case Packer with 380V 50Hz Power for Beverage and Food Packaging 1
Equipment Components & Process Flow
The equipment consists of rack, bottle feeding conveyor, pressure control module, product grouping system, bottle pushing parts, cardboard buffer area, cardboard conveyor section, cardboard supply transfer parts, cardboard folding and forming sections, operation box and electrical cabinet.
Servo Mechanism Configuration
Mechanism name Number of servos (sets)
Upper forming 2
Lower forming 2
Folding on both sides 4
Top capping 1
Forming transition zone 1
Product Images
30 Packs Per Minute Fully Automatic Wrap Around Case Packer with 380V 50Hz Power for Beverage and Food Packaging 2

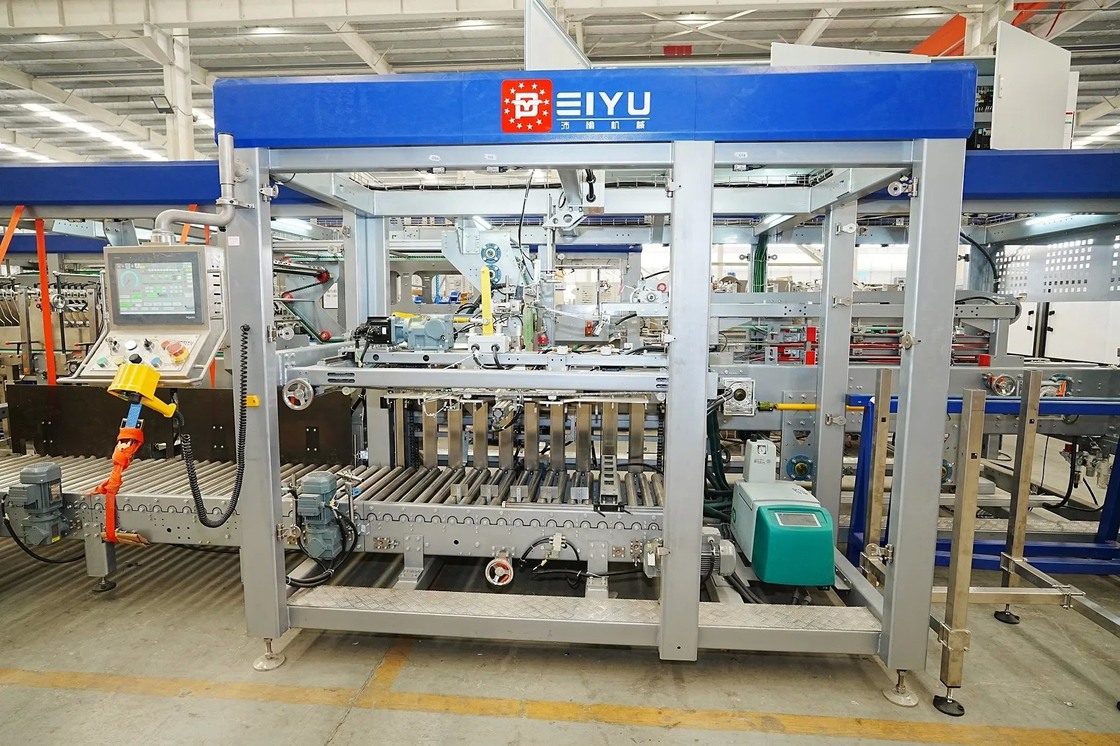

30 Packs Per Minute Fully Automatic Wrap Around Case Packer with 380V 50Hz Power for Beverage and Food Packaging 3
Manufacturer Information
Peiyu Enterprise owns multiple companies including Shanghai Peiyu Packaging Technology Co., Ltd. and Anhui Peiyu Packaging Technology Co., Ltd. We provide complete intelligent equipment solutions for liquid and solid product packaging, including flexible packaging, cans, PET bottles, glass bottles, and aseptic cartons.
Our 60,000 square meter production base in Anhui Province features advanced processing equipment including laser cutting machines, processing centers, and tube cutting machines. We hold ISO9001 certification and European CE certification.

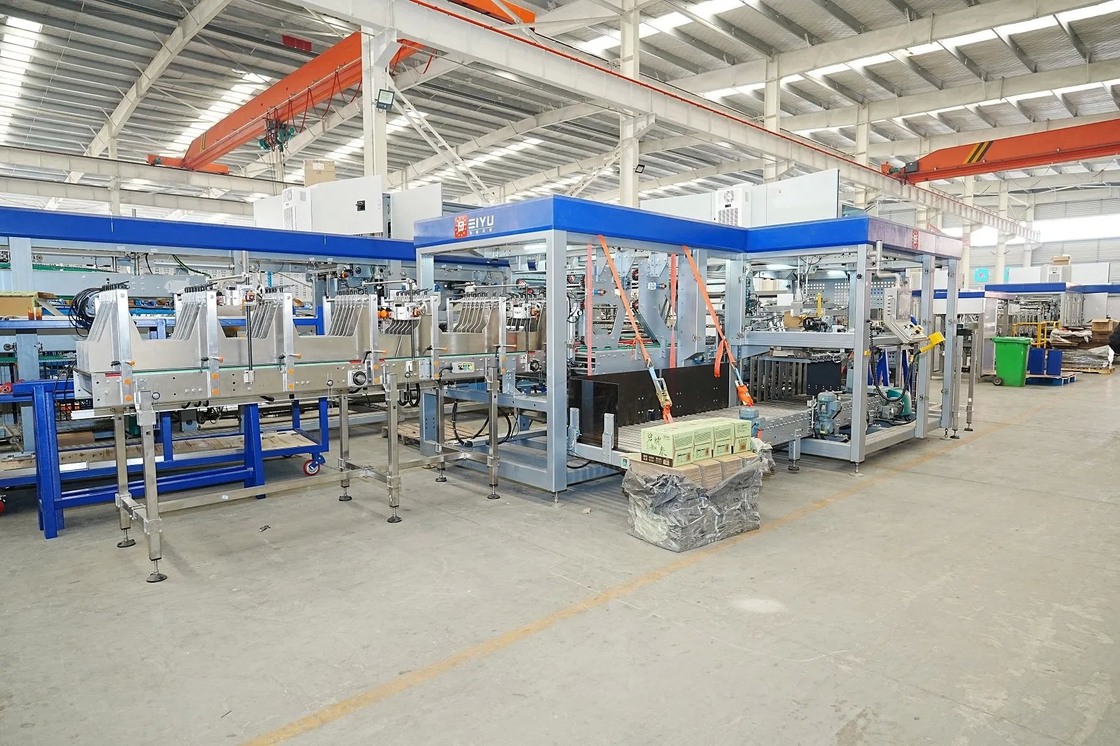

30 Packs Per Minute Fully Automatic Wrap Around Case Packer with 380V 50Hz Power for Beverage and Food Packaging 4

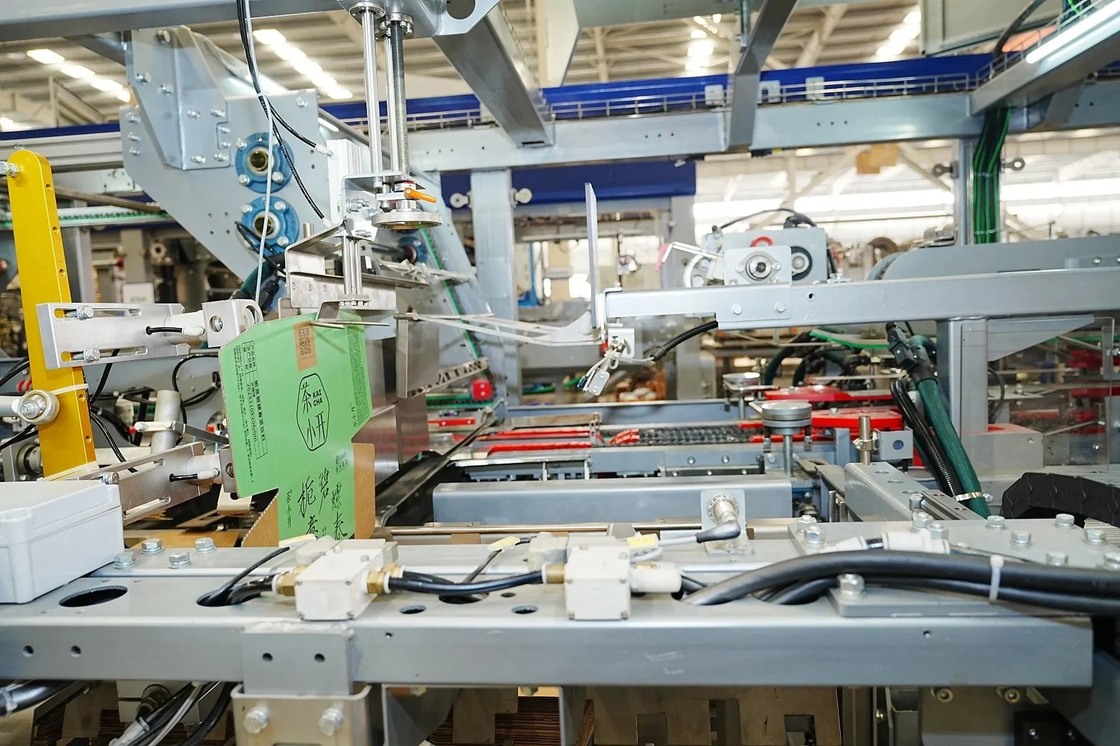

30 Packs Per Minute Fully Automatic Wrap Around Case Packer with 380V 50Hz Power for Beverage and Food Packaging 5
30 Packs Per Minute Fully Automatic Wrap Around Case Packer with 380V 50Hz Power for Beverage and Food Packaging 6
