Fully Automatic 100g-3kg Wrap Around Case Packer with Mechanical Stretch for No Pallet Wrapping

Fully Automatic 100g-3kg Wrap Around Case Packer with Mechanical Stretch for No Pallet Wrapping

100g-3kg Wrap Around Case Packer

Mechanical Stretch Carton Packer

No Pallet Wrapping Machine

Contact Us
Request A Quote
Fully Automatic 100g-3kg Wrap Around Case Packer with Mechanical Stretch for No Pallet Wrapping Fully Automatic 100g-3kg Wrap Around Case Packer with Mechanical Stretch for No Pallet Wrapping Fully Automatic 100g-3kg Wrap Around Case Packer with Mechanical Stretch for No Pallet Wrapping Fully Automatic 100g-3kg Wrap Around Case Packer with Mechanical Stretch for No Pallet Wrapping Fully Automatic 100g-3kg Wrap Around Case Packer with Mechanical Stretch for No Pallet Wrapping Fully Automatic 100g-3kg Wrap Around Case Packer with Mechanical Stretch for No Pallet Wrapping
Product Details
Production Capacity:
80 Packs/minute
Carton Length:
150-420mm
Carton Width:
130-350mm
Carton Height:
100-335mm
Product Diameter:
φ48-106mm
Product Height:
95-330mm
Equipment Dimensions:
15850mm×4050mm×2150mm
Equipment Weight:
11000Kg
Operating Air Pressure:
6bar
Air Consumption:
160L/min Max
Working Voltage:
380V AC 50HZ
Control Voltage:
24V DC/AC
Installed Power:
30KW
Operating Power:
20KW
Number Of Servos:
20 Sets
Highlight:

100g-3kg Wrap Around Case Packer

,

Mechanical Stretch Carton Packer

,

No Pallet Wrapping Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
60000
RELATED PRODUCTS
Good price 60 Packs Per Minute Fully Wrapped Winding No Pallet Wrap Around Case Packer for Beverage and Food online

60 Packs Per Minute Fully Wrapped Winding No Pallet Wrap Around Case Packer for Beverage and Food

Get Best Price
Good price Automatic Wrap Around Carton Case Packer with 25 Cases/minute Speed, Stainless Steel 304 Construction, and AC 380V Power online

Automatic Wrap Around Carton Case Packer with 25 Cases/minute Speed, Stainless Steel 304 Construction, and AC 380V Power

Get Best Price
Good price CE ISO Certified Automatic Wrap Around Case Packer with Schneider Electrics for Stable Performance in Carton Packaging online

CE ISO Certified Automatic Wrap Around Case Packer with Schneider Electrics for Stable Performance in Carton Packaging

Get Best Price
Good price Stable Performance CE ISO Certified Wrap Around Case Packer with Touch Screen Control for Bottles Jars Cans online

Stable Performance CE ISO Certified Wrap Around Case Packer with Touch Screen Control for Bottles Jars Cans

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
OEM Wrap Around Cartoning Machine Case Packer 48000bph 60000bph
Product Description
Applicable bottle types: square bottles, flat bottles, round bottles.
This wrap around case packing machine is widely used for secondary packaging of PET bottles, glass bottles or metal cans, and can replace cartoning machines and their ancillary equipment.
Capacity range: 35-100 packs per minute (depending on packaging specifications)
Alternative Names
  • Carton Packer
  • Case Packer
  • Wrap Around Packer
  • Cardboard Wraparound Case Packer
  • One-piece Carton Packaging Machine
  • Shrinking + Carton Wrapping Machine
  • Wrap Around Case Packing Machine
  • Multi-Function Cartoning Carton Boxes Packer
Main Components Configuration
Component Brand
PLC Inovance, China
Servo motor and control system Inovance, China
Upper configuration software Ab Optix
Frequency converter Inovance, China
Proximity electronic switch SICK or equivalent brand
Terminal Phoenix
Technical Specifications
Parameter Value
Production capacity 80 packs/minute (depending on bottle type and packaging method)
Carton dimensions (L×W×H) L: 150-420mm, W: 130-350mm, H: 100-335mm
Packing specifications 3×4, 3×5, 4×6, 2×3, 2×4 and other configurations
Product diameter range φ48-106mm
Product height range 95-330mm
Equipment dimensions (L×W×H) 15850×4050×2150mm
Equipment weight 11000Kg
Power requirements 380V AC 50HZ, 30KW installed power, 20KW operating power
Carton Folding Process
Inner Flap Forming Process
Fully Automatic 100g-3kg Wrap Around Case Packer with Mechanical Stretch for No Pallet Wrapping 0
Outer Tongue Forming Process
Fully Automatic 100g-3kg Wrap Around Case Packer with Mechanical Stretch for No Pallet Wrapping 1
Equipment Components & Process Flow
The machine consists of:
  • Rack and bottle feeding conveyor
  • Pressure control module conveyor
  • Product grouping and bottle pushing components
  • Cardboard buffer area and conveyor sections
  • Cardboard supply transfer components
  • Folding and forming sections
  • Operation box and electrical cabinet
Servo Motor Configuration
Mechanism Number of Servos
Upper forming 2
Lower forming 2
Folding on both sides 4
Bottle pusher 1
Cardboard lifting and exchange 3
Product Images

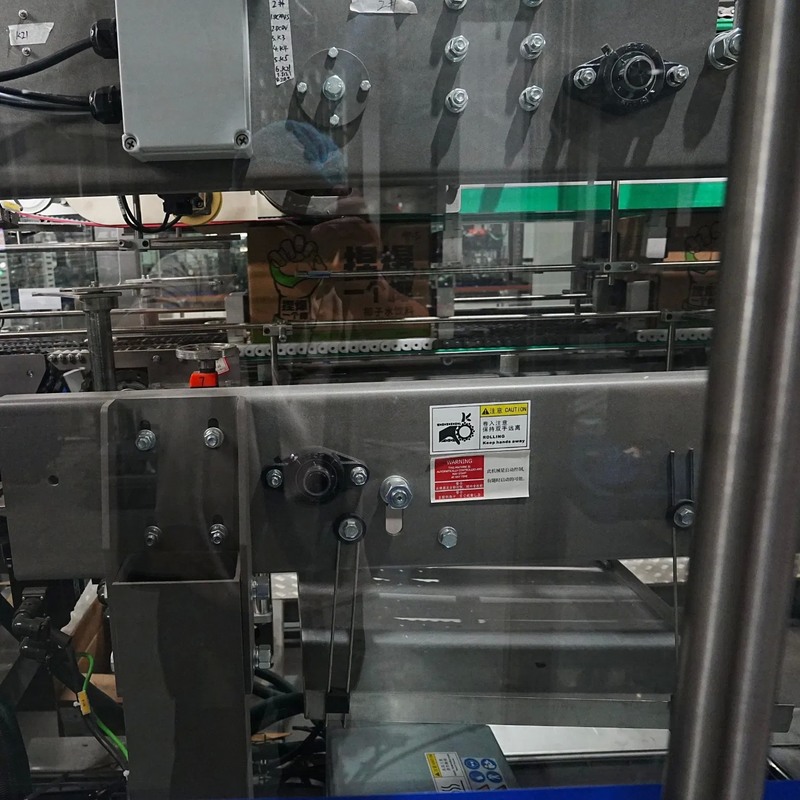

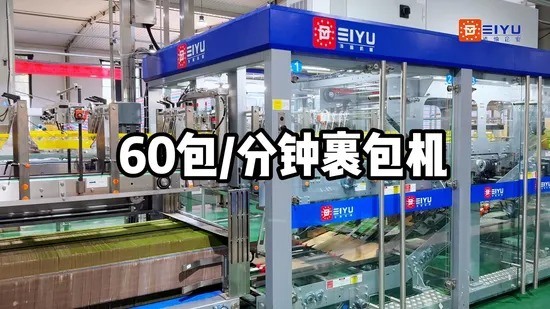

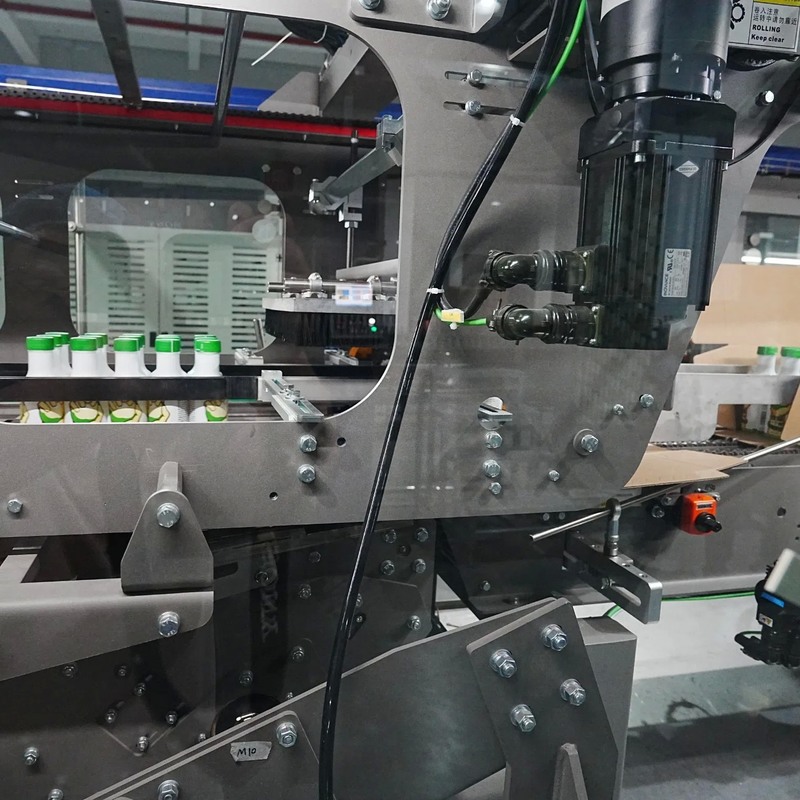

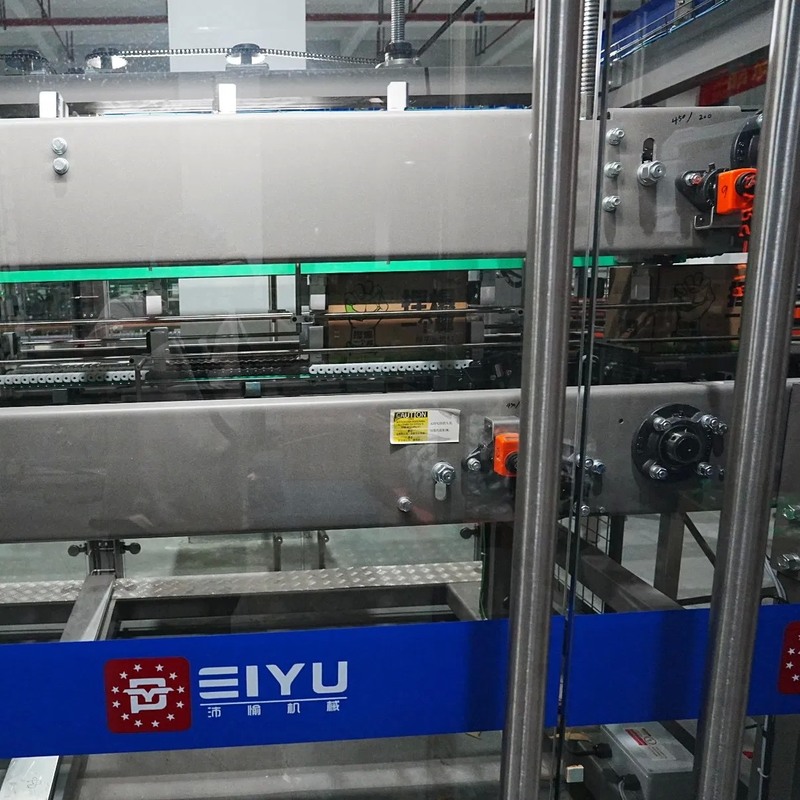

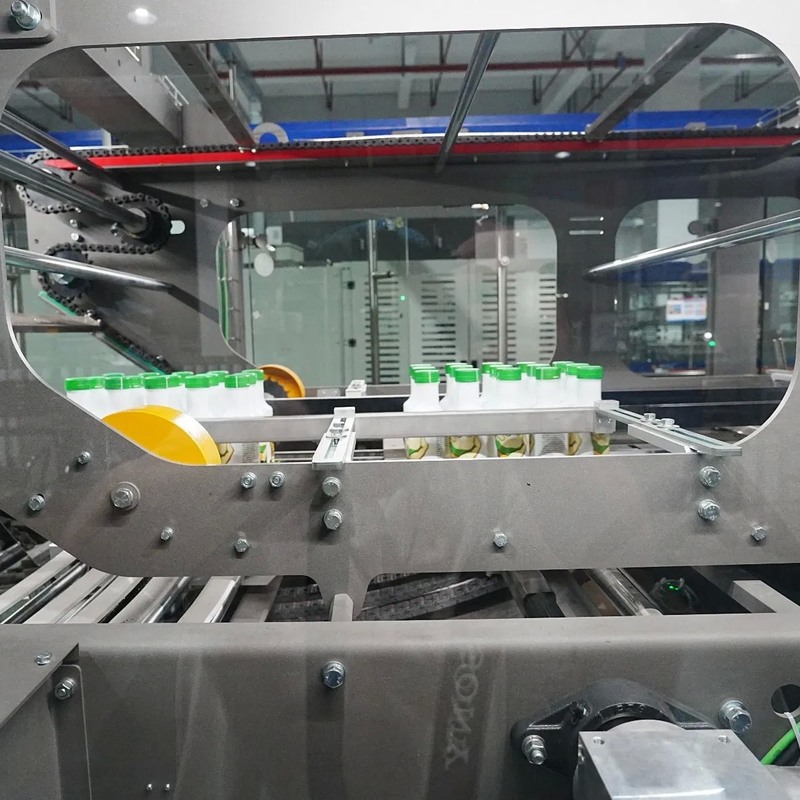

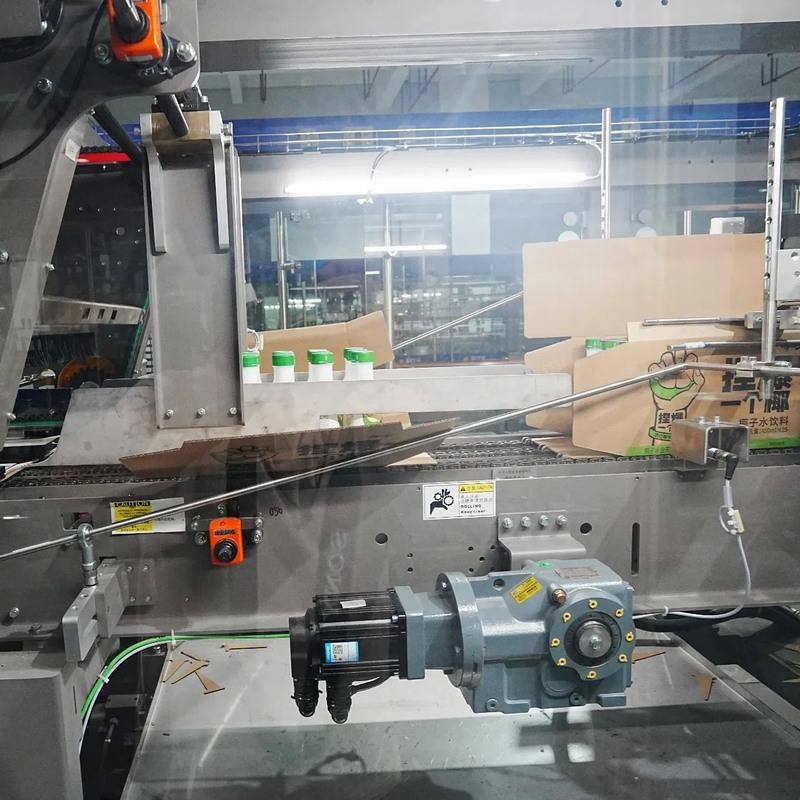

Fully Automatic 100g-3kg Wrap Around Case Packer with Mechanical Stretch for No Pallet Wrapping 2 Fully Automatic 100g-3kg Wrap Around Case Packer with Mechanical Stretch for No Pallet Wrapping 3 Fully Automatic 100g-3kg Wrap Around Case Packer with Mechanical Stretch for No Pallet Wrapping 4
