Automatic Drop Type Wrap Around Case Packer with PLC and HMI Control and Bottle Shortage Alarm

Automatic Drop Type Wrap Around Case Packer with PLC and HMI Control and Bottle Shortage Alarm

Drop Type Wrap Around Case Packer

PLC and HMI Control Automatic Wrapping Machine

Bottle Shortage Alarm Case Packer

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCWM.NA1H

Contact Us
Request A Quote
Automatic Drop Type Wrap Around Case Packer with PLC and HMI Control and Bottle Shortage Alarm
Automatic Drop Type Wrap Around Case Packer with PLC and HMI Control and Bottle Shortage Alarm Automatic Drop Type Wrap Around Case Packer with PLC and HMI Control and Bottle Shortage Alarm Automatic Drop Type Wrap Around Case Packer with PLC and HMI Control and Bottle Shortage Alarm Automatic Drop Type Wrap Around Case Packer with PLC and HMI Control and Bottle Shortage Alarm Automatic Drop Type Wrap Around Case Packer with PLC and HMI Control and Bottle Shortage Alarm Automatic Drop Type Wrap Around Case Packer with PLC and HMI Control and Bottle Shortage Alarm
Product Details
Model NO.:
SPC-DL
Driven Type:
Electric
Automatic Grade:
Automatic
Inclusion Degree:
Fully Wrapped
Structure:
Drop Type
Film Frame:
Mechanical Stretch
Capacity:
5-90 Cases/Min
Electrics:
Schneider
Material:
Stainless Steel
Dimension:
6360*2607*2700mm
Container Height:
1100mm
Processing Height:
2500mm
Bottle Height:
1100±50mm
Box Height:
700±50mm
Power:
12kw
Weight:
300kg
Air Pressure:
0.6-0.7Mpa
Air Consumption:
500NL/min
Max Packing Rate:
14 Times Per Minute
Highlight:

Drop Type Wrap Around Case Packer

,

PLC and HMI Control Automatic Wrapping Machine

,

Bottle Shortage Alarm Case Packer

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Individual quotation according to different requirements
Packaging Details
The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.
Delivery Time
10-20 workdays
Payment Terms
L/C,T/T
Supply Ability
300 pcs per month
RELATED PRODUCTS
Good price High Speed 100g-3kg Wrap Around Case Packer with Wide Application and Mechanical Driven Design online Video

High Speed 100g-3kg Wrap Around Case Packer with Wide Application and Mechanical Driven Design

Get Best Price
Good price 30kw Fully Automatic Wrap Around Case Packer Cartoning Machine with 45box/Minute Capacity and Mechanical Stretch online Video

30kw Fully Automatic Wrap Around Case Packer Cartoning Machine with 45box/Minute Capacity and Mechanical Stretch

Get Best Price
Good price 90 Packs Per Minute Fully Wrapped Winding Wrap Around Case Packer for Beverage Line online Video

90 Packs Per Minute Fully Wrapped Winding Wrap Around Case Packer for Beverage Line

Get Best Price
Good price High-Speed 12000-36000 bottles/Hour Wrap Around Case Packer with Siemens PLC and Pneumatic Lifting Structure online Video

High-Speed 12000-36000 bottles/Hour Wrap Around Case Packer with Siemens PLC and Pneumatic Lifting Structure

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
Automatic Wrapped Packaging Machine for Drinks Food Boxer
Product Overview
The drop-type case packer from Peiyu is an intelligent automatic packaging solution featuring a top in-feed structure for space efficiency. Designed for glass bottles, plastic bottles, and various round or square containers, this machine achieves a maximum packing rate of 14 times per minute.
Key Features
  • PLC and HMI control system for easy operation and maintenance
  • Bottle shortage alarm with automatic shutdown function
  • Cushioned cardboard entry system for gentle, high-speed material handling
  • "No bottle, no case" safety configuration reduces labor intensity
  • Complete packaging process including forming, gluing, and sealing
  • Ideal for automated food packaging applications
Technical Specifications
Container Conveyor Height 1100mm Standard Capacity 15-20 cartons/min
Processing Height 2500mm Applicable Products PET, round/square bottles, cans, tin cans, glass bottles
Driven Type Electric Packing Arrangement 3*4, 4*6 and other specifications
Bottle Conveyor Height 1100±50mm Air Pressure 0.6-0.7Mpa
Box Conveyor Height 700±50mm Air Consumption 500NL/min
Power 12kw Dimension 6360*2607*2700mm
Weight 300kg Transport Package Film Packing or Wooden Case

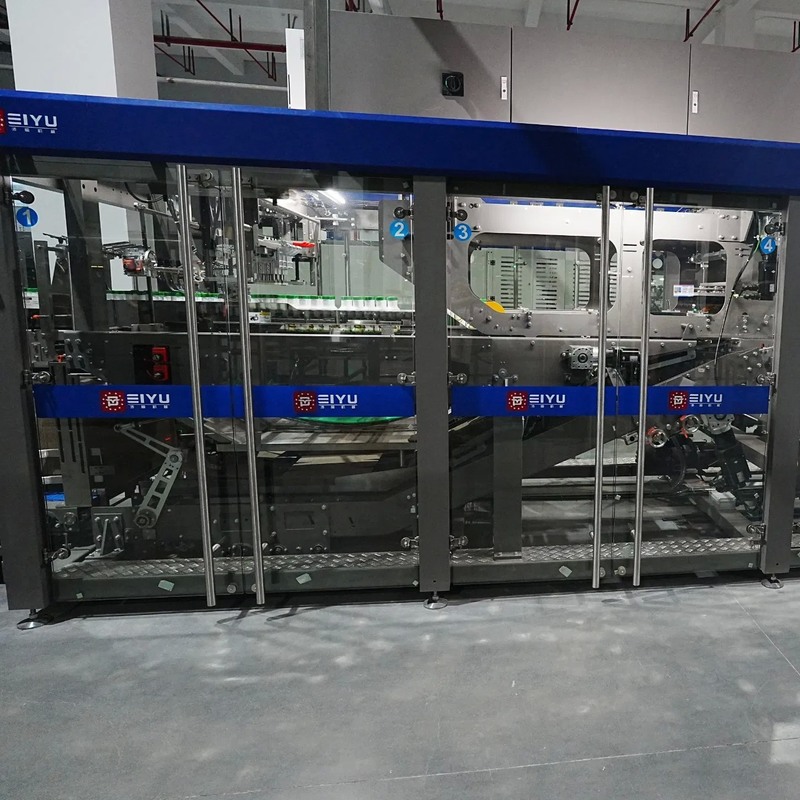

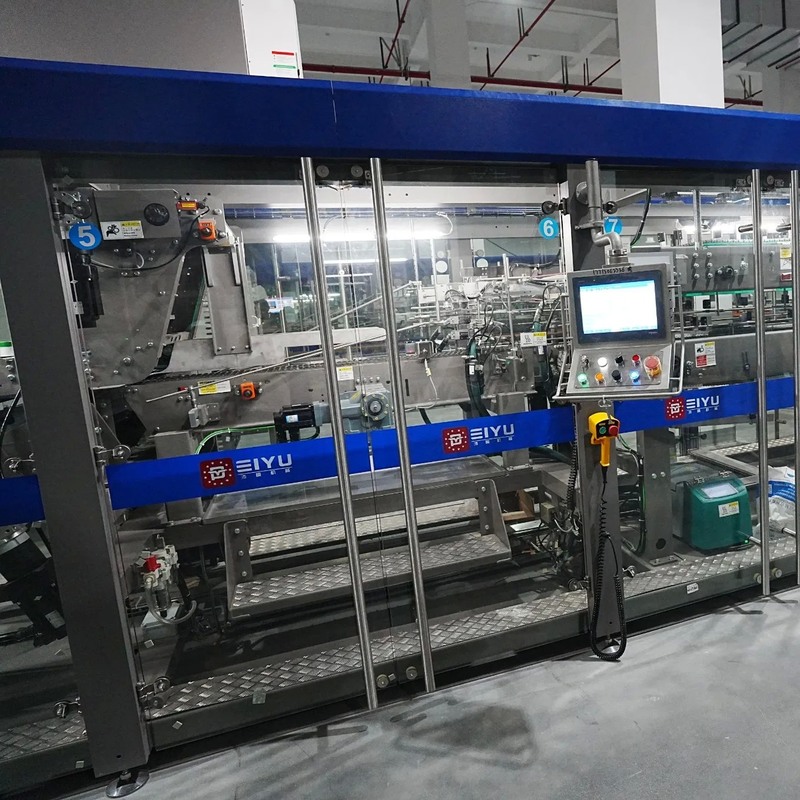

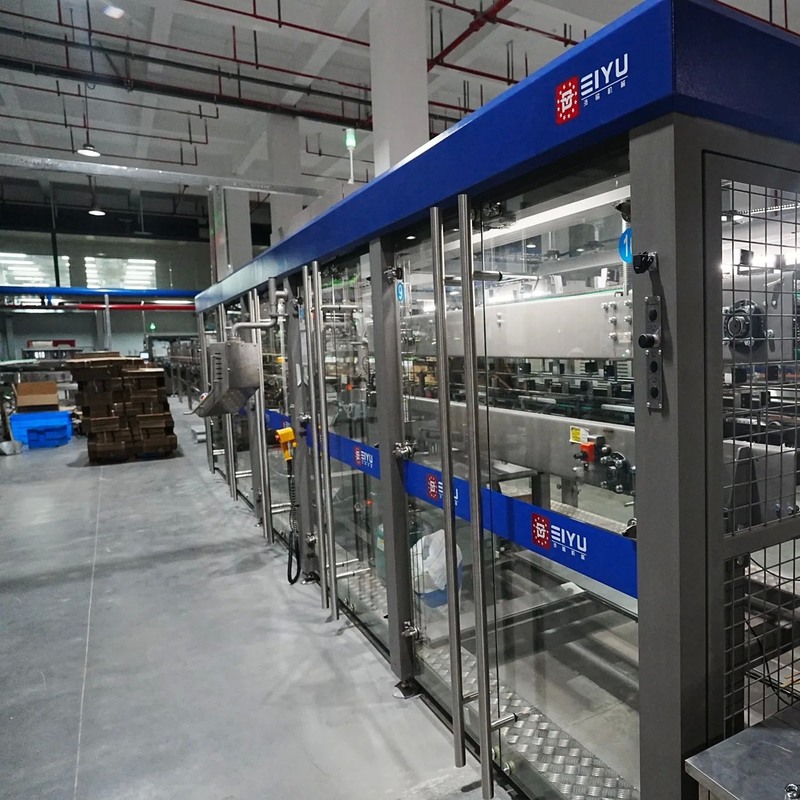

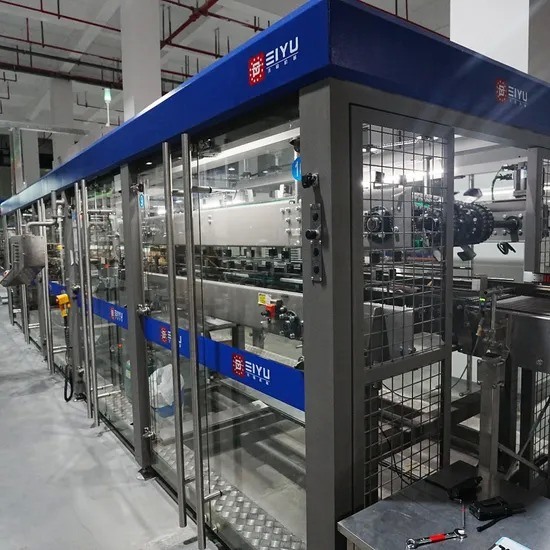

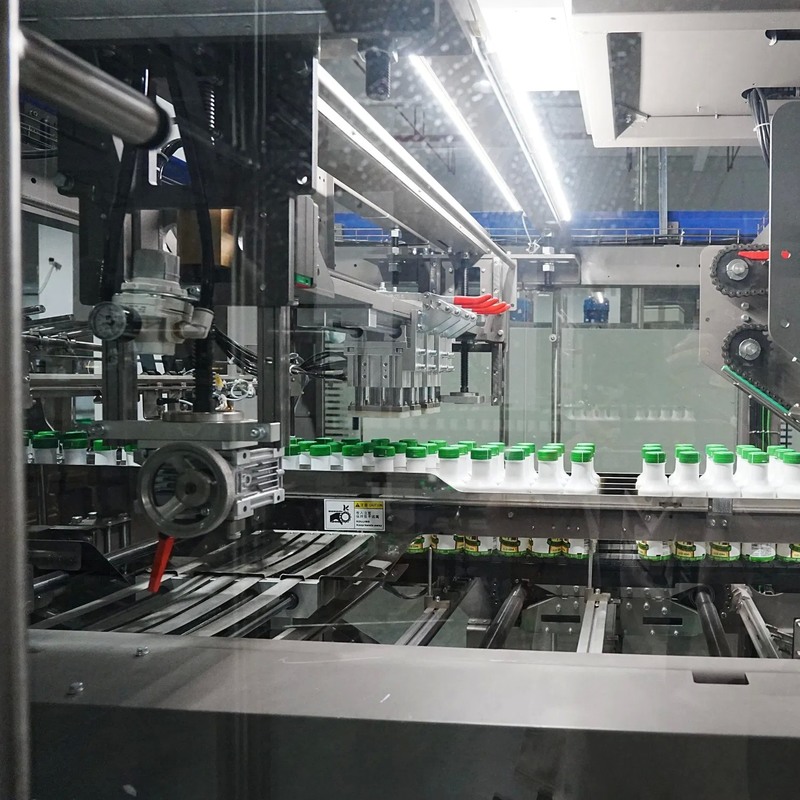

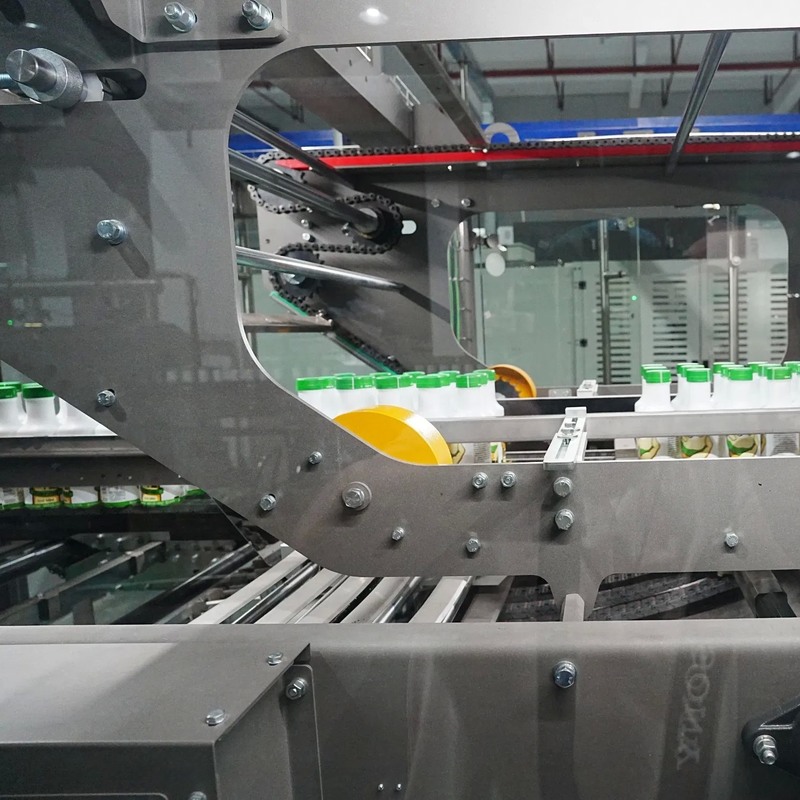

Product Images
Automatic Drop Type Wrap Around Case Packer with PLC and HMI Control and Bottle Shortage Alarm 0
Automatic Drop Type Wrap Around Case Packer with PLC and HMI Control and Bottle Shortage Alarm 1
Automatic Drop Type Wrap Around Case Packer with PLC and HMI Control and Bottle Shortage Alarm 2
Automatic Drop Type Wrap Around Case Packer with PLC and HMI Control and Bottle Shortage Alarm 3
Automatic Drop Type Wrap Around Case Packer with PLC and HMI Control and Bottle Shortage Alarm 4
Automatic Drop Type Wrap Around Case Packer with PLC and HMI Control and Bottle Shortage Alarm 5
Certifications
Automatic Drop Type Wrap Around Case Packer with PLC and HMI Control and Bottle Shortage Alarm 6
Manufacturing Facilities
Automatic Drop Type Wrap Around Case Packer with PLC and HMI Control and Bottle Shortage Alarm 7
Automatic Drop Type Wrap Around Case Packer with PLC and HMI Control and Bottle Shortage Alarm 8
Our Clients
Automatic Drop Type Wrap Around Case Packer with PLC and HMI Control and Bottle Shortage Alarm 9
