Automatic Wrap Around Case Packer with 20-100 Packs/Minute Capacity and 380V 50Hz Power for Beverage and Food Packaging

Automatic Wrap Around Case Packer with 20-100 Packs/Minute Capacity and 380V 50Hz Power for Beverage and Food Packaging

20-100 Packs/Minute Wrap Around Case Packer

380V 50Hz Case Wrapping Machine

100g-3kg Carton Packer

Contact Us
Request A Quote
Automatic Wrap Around Case Packer with 20-100 Packs/Minute Capacity and 380V 50Hz Power for Beverage and Food Packaging Automatic Wrap Around Case Packer with 20-100 Packs/Minute Capacity and 380V 50Hz Power for Beverage and Food Packaging Automatic Wrap Around Case Packer with 20-100 Packs/Minute Capacity and 380V 50Hz Power for Beverage and Food Packaging Automatic Wrap Around Case Packer with 20-100 Packs/Minute Capacity and 380V 50Hz Power for Beverage and Food Packaging Automatic Wrap Around Case Packer with 20-100 Packs/Minute Capacity and 380V 50Hz Power for Beverage and Food Packaging Automatic Wrap Around Case Packer with 20-100 Packs/Minute Capacity and 380V 50Hz Power for Beverage and Food Packaging
Product Details
Model NO.:
Customized
Driven Type:
Mechanical
Automatic Grade:
Automatic
Structure:
No Pallet Wrapping Machine
Film Frame Structure:
Mechanical Stretch
Capacity:
20-100 Packs/Minute/Customized
Power:
380V 50Hz Customized
Applicable Container Size:
100g-3kg Customized
Production Capacity:
500 Sets/Year
Equipment Weight:
11000Kg
Operating Air Pressure:
6bar
Air Consumption:
160L/min Max
Working Voltage:
380V AC 50HZ; 24V DC/AC
Installed Power:
30KW
Operating Power:
20KW
Highlight:

20-100 Packs/Minute Wrap Around Case Packer

,

380V 50Hz Case Wrapping Machine

,

100g-3kg Carton Packer

Payment & Shipping Terms
Minimum Order Quantity
1
Price
60000
RELATED PRODUCTS
Good price 60 Packs Per Minute Fully Wrapped Winding No Pallet Wrap Around Case Packer for Beverage and Food online

60 Packs Per Minute Fully Wrapped Winding No Pallet Wrap Around Case Packer for Beverage and Food

Get Best Price
Good price Automatic Wrap Around Carton Case Packer with 25 Cases/minute Speed, Stainless Steel 304 Construction, and AC 380V Power online

Automatic Wrap Around Carton Case Packer with 25 Cases/minute Speed, Stainless Steel 304 Construction, and AC 380V Power

Get Best Price
Good price CE ISO Certified Automatic Wrap Around Case Packer with Schneider Electrics for Stable Performance in Carton Packaging online

CE ISO Certified Automatic Wrap Around Case Packer with Schneider Electrics for Stable Performance in Carton Packaging

Get Best Price
Good price Stable Performance CE ISO Certified Wrap Around Case Packer with Touch Screen Control for Bottles Jars Cans online

Stable Performance CE ISO Certified Wrap Around Case Packer with Touch Screen Control for Bottles Jars Cans

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
Shrink Wrapper Followed by Case Wrapping Machine for Water Line
Product Description
Applicable bottle types: square bottles, flat bottles, round bottles.
This case wrapping machine is widely used for secondary packaging of PET bottles, glass bottles or metal cans, and can replace cartoning machines and their ancillary equipment.
Capacity range: 35-100 packs per minute (depending on packaging specifications)
Alternative Names for This Equipment:
  • Carton Packer
  • Case Packer
  • Wrap Around Packer
  • Wrap Around Case Packer
  • Cardboard Wraparound Case Packer
  • One-piece Carton Packaging Machine
  • Case Packer & Case Unpacker
  • Shrinking + Carton Wrapping Machine
  • Shrinking Around Carton Packaging Machine
  • Wrap Around Case Packing Machine
  • Wrapped Packaging Machine
  • Wrap Around Carton Case Packer
  • New Box Wrap Packing Machine
  • Multi-Function Cartoning Carton Boxes Packer
  • Case Packer Boxing Machine
  • Packing Machine
  • Packaging Machine
  • Wrap Around Carton Packer
  • Wrap Around Carton Packing Machine
Main Components Configuration
Component Brand
PLC Inovance, China
Servo motor and control system Inovance, China
Upper configuration software Ab Optix
Frequency converter Inovance, China
Proximity electronic switch SICK or equivalent brand
Air switch Equivalent brand
Motor protector Equivalent brand
Contactor Equivalent brand
Button Goto electrical or equivalent brand
Intermediate relay Goto electrical or equivalent brand
Phase loss protector Goto electrical or equivalent brand
Terminal Phoenix
Ordinary motor reducer
Servo motor with reducer Domestic precision reducer
Equipment Specifications
Parameter Specification
Production capacity 80 packs/minute (depending on bottle type and packaging method)
Carton dimensions after molding (mm) Length (L): 150-420mm (parallel to molding chain)
Width (W): 130-350mm (perpendicular to molding chain)
Height (H): 100-335mm
Packing specifications 3*4, 3*5, 4*6, 2*3, 2*4 and other configurations (determined by bottle size and style)
Product diameter requirements For inlet multi-row differential machines: φ52-106mm
For inlet non-differential machines: φ48mm minimum
Square/rectangular bottles: shortest side ≥52mm
Product height range 95mm-330mm
Equipment dimensions (L×W×H) ≈15850×4050×2150mm (requires ≥3000mm door clearance)
Applicable container types Cans, glass bottles, PET containers, etc.
Conveyor elevations Box: 1350mm±30mm
Bottle: 1350mm±30mm
Equipment weight ≈11000Kg
Operating air pressure 6bar
Air consumption 160L/min (Max)
Power requirements 380V AC 50HZ; 24V DC/AC
Power consumption Installed: 30KW
Operating: 20KW
Carton Folding Process Diagrams
Inner Flap Forming Process Flow
Automatic Wrap Around Case Packer with 20-100 Packs/Minute Capacity and 380V 50Hz Power for Beverage and Food Packaging 0
Outer Tongue Forming Process Flow
Automatic Wrap Around Case Packer with 20-100 Packs/Minute Capacity and 380V 50Hz Power for Beverage and Food Packaging 1
Equipment Components and Process Flow
The equipment consists of:
  • Rack structure
  • Bottle feeding conveyor
  • Pressure control module conveyor
  • Product grouping mechanism
  • Bottle pushing components
  • Cardboard buffer area
  • Cardboard conveyor section
  • Cardboard supply transfer components
  • Cardboard slope conveyor section
  • Folding and forming transition section
  • Lower/upper side spraying and forming sections
  • Operation box and electrical cabinet
Process Flow Description:
1. Cardboard is manually placed on the buffer conveyor chain plate and conveyed to the slotting lifting area.
2. Vacuum suction cups separate cardboard pieces individually.
3. Separated cardboard is transferred via synchronous belt to the slope conveyor section.
4. Products are conveyed to the grouping area and spaced equally before entering the bottle pushing area.
5. Products and cardboard combine at the junction point.
6. Combined units enter the forming area where folding and spraying complete the automatic wrapping process.
Servo Motor Configuration:
Mechanism Number of Servos
Upper forming 2
Lower forming 2
Folding on both sides 4
Top capping 1
Forming transition zone 1
Bottle pusher 1
Grouping conveying 1
Cardboard climbing conveying 1
Product grouping 2
Cardboard transfer 2
Cardboard lifting and exchange 3

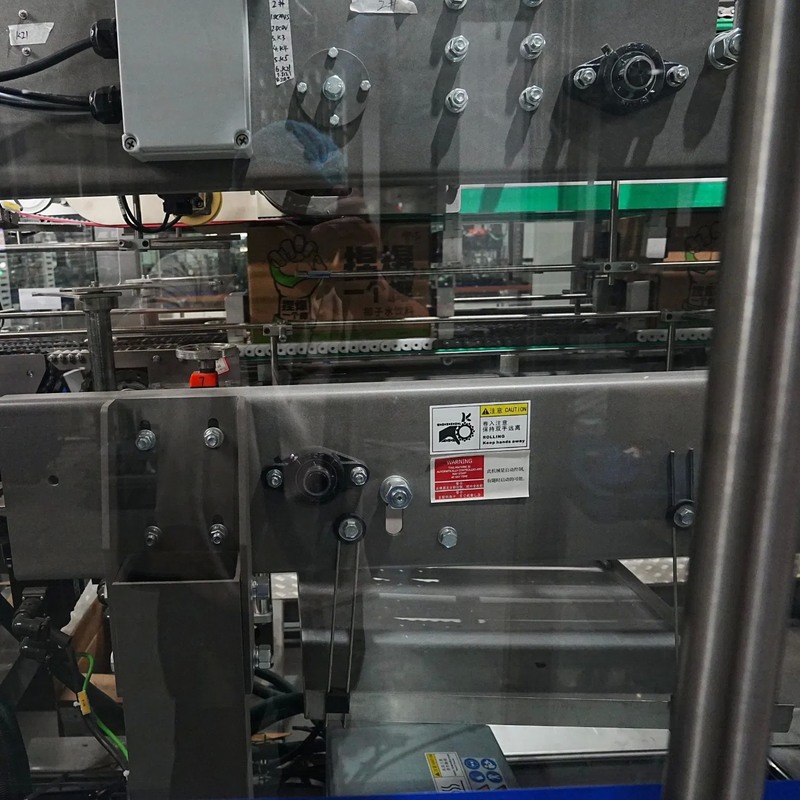

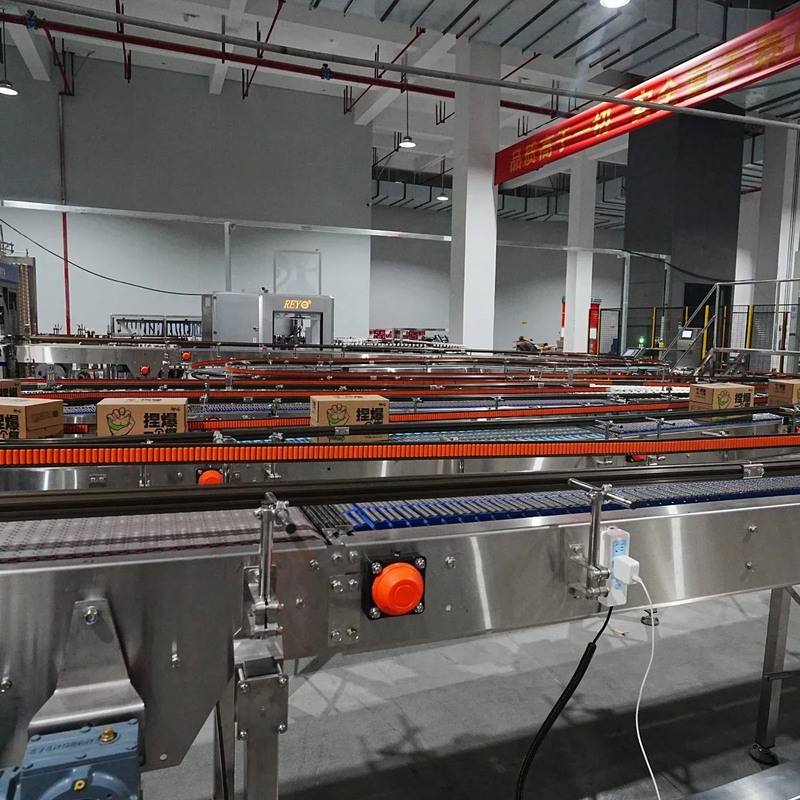

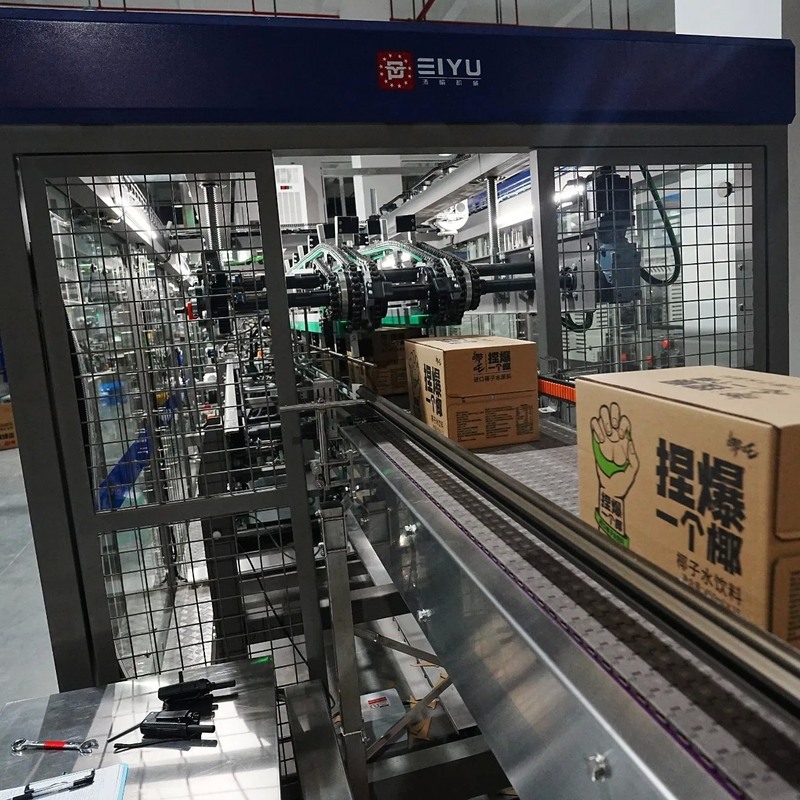

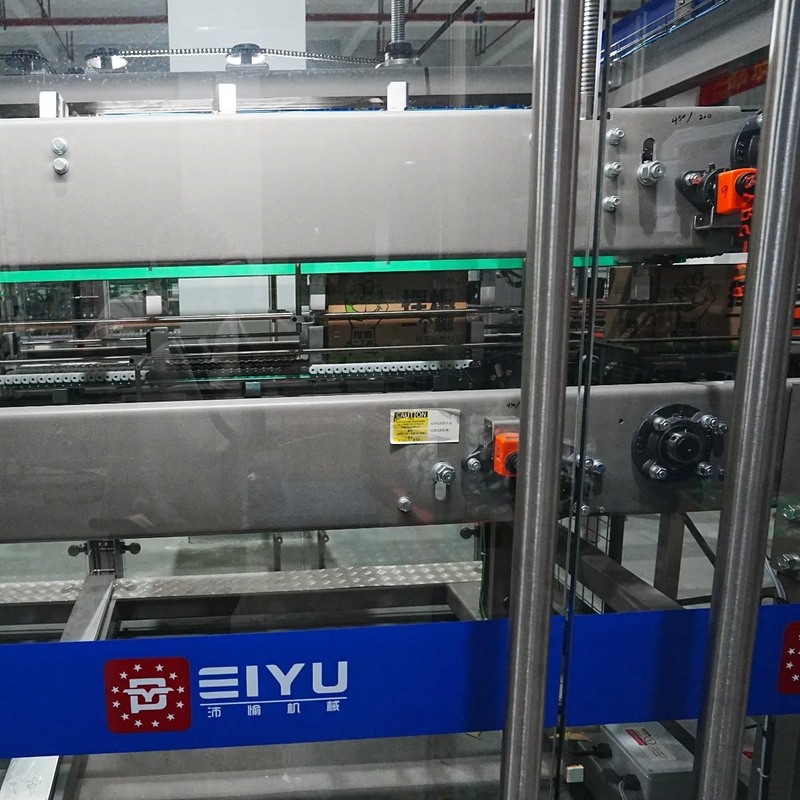

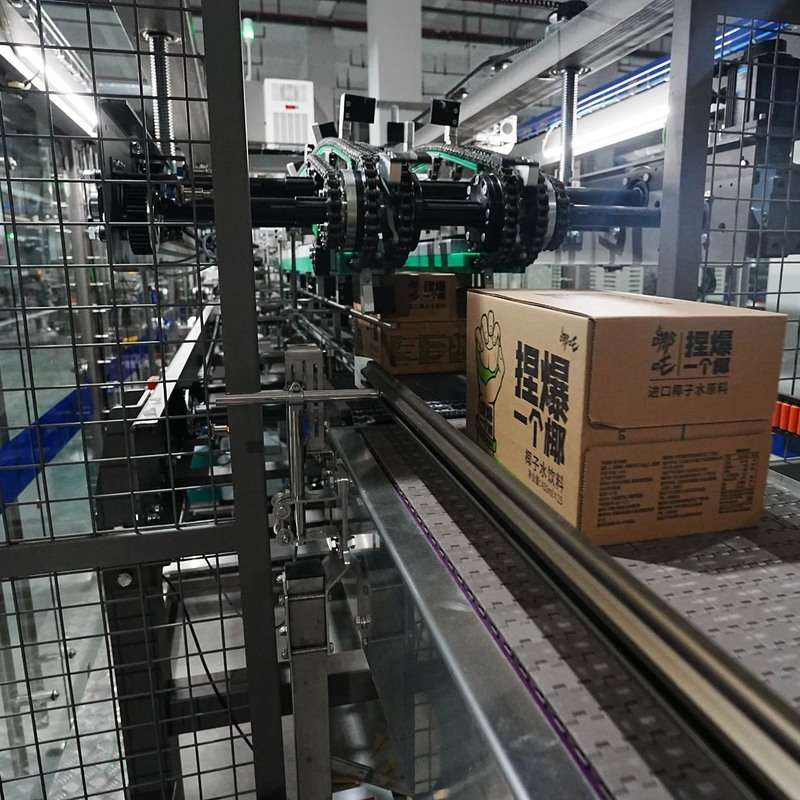

Detailed Equipment Photos
Automatic Wrap Around Case Packer with 20-100 Packs/Minute Capacity and 380V 50Hz Power for Beverage and Food Packaging 2 Automatic Wrap Around Case Packer with 20-100 Packs/Minute Capacity and 380V 50Hz Power for Beverage and Food Packaging 3 Automatic Wrap Around Case Packer with 20-100 Packs/Minute Capacity and 380V 50Hz Power for Beverage and Food Packaging 4 Automatic Wrap Around Case Packer with 20-100 Packs/Minute Capacity and 380V 50Hz Power for Beverage and Food Packaging 5 Automatic Wrap Around Case Packer with 20-100 Packs/Minute Capacity and 380V 50Hz Power for Beverage and Food Packaging 6 Automatic Wrap Around Case Packer with 20-100 Packs/Minute Capacity and 380V 50Hz Power for Beverage and Food Packaging 7 Automatic Wrap Around Case Packer with 20-100 Packs/Minute Capacity and 380V 50Hz Power for Beverage and Food Packaging 8 Automatic Wrap Around Case Packer with 20-100 Packs/Minute Capacity and 380V 50Hz Power for Beverage and Food Packaging 9 Automatic Wrap Around Case Packer with 20-100 Packs/Minute Capacity and 380V 50Hz Power for Beverage and Food Packaging 10 Automatic Wrap Around Case Packer with 20-100 Packs/Minute Capacity and 380V 50Hz Power for Beverage and Food Packaging 11
Manufacturer Profile
Peiyu Enterprise wholly owns multiple subsidiaries including Shanghai Peiyu Packaging Technology Co., Ltd., Anhui Peiyu Packaging Technology Co., Ltd., and Shanghai Peiyu Machinery Manufacturing Co., Ltd. We provide complete intelligent equipment solutions and turnkey engineering services for global liquid and solid product companies.
Capabilities:
  • Complete line solutions for flexible packaging, cans, aluminum bottles, PET/PE/glass containers, roof bags, and aseptic cartons
  • Hundreds of mature packaging machinery models covering filling, sterilization, loading/unloading, labeling, packing, and conveying systems
  • Applications in beverages, dairy, water, condiments, alcohol, oils, cosmetics, and pharmaceuticals
Global Partnerships:
We maintain extensive cooperation with industry leaders including Thailand Red Bull, BONDULLE Group, Mars, DANONE Group, Yili Group, Mengniu Group, Unilever, Heinz Group, and many others. Our products are exported to North America, South America, Africa, Europe, and the Middle East.
Manufacturing Excellence:
  • 60,000 sqm production base in Anhui National Development Zone
  • Advanced processing equipment including laser cutting, plasma cutting, and precision machining centers
  • ISO9001 certified with TUV audit and European CE certification
  • Technical R&D centers in Xi'an, Shanghai, and Chuzhou
