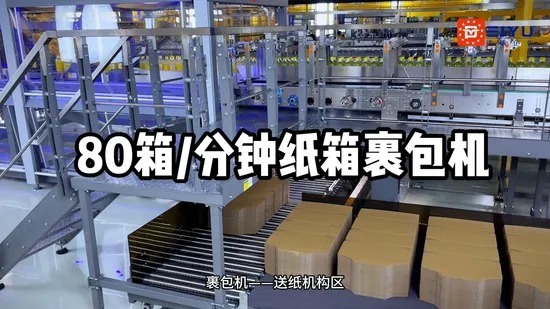

Automatic Wrap Around Case Packer for Beverage Production Line with Fully Wrapped Winding and No Pallet Design

Beverage Production Line Wrap Around Case Packer

Fully Wrapped Winding Carton Packer

No Pallet Wrapping Machine Case Packer

Request A Quote

Automatic Wrap Around Case Packer for Beverage Production Line with Fully Wrapped Winding and No Pallet Design

Product Details

Capacity:

20-100 Packs/Minute/Customized

Power:

380V 50Hz Customized

Applicable Container Size:

100g-3kg Customized

Equipment Production Capacity:

80 Packs/Minute

Carton Dimensions:

L: 150-420mm, W: 130-350mm, H: 100-335mm

Product Diameter:

φ52mm-106mm

Product Height:

95mm-330mm

Equipment Size:

15850mm×4050mm×2150mm

Equipment Weight:

11000Kg

Operating Air Pressure:

6bar

Air Consumption:

160L/min Max

Working Voltage:

380V AC 50HZ; 24V DC/AC

Installed Power:

30KW

Operating Power:

20KW

Box Conveyor Elevation:

1350mm±30mm

Highlight:

Beverage Production Line Wrap Around Case Packer

Fully Wrapped Winding Carton Packer

No Pallet Wrapping Machine Case Packer

Payment & Shipping Terms

Minimum Order Quantity

Price

60000

60 Packs Per Minute Fully Wrapped Winding No Pallet Wrap Around Case Packer for Beverage and Food

Get Best Price

Automatic Wrap Around Carton Case Packer with 25 Cases/minute Speed, Stainless Steel 304 Construction, and AC 380V Power

Get Best Price

CE ISO Certified Automatic Wrap Around Case Packer with Schneider Electrics for Stable Performance in Carton Packaging

Get Best Price

Stable Performance CE ISO Certified Wrap Around Case Packer with Touch Screen Control for Bottles Jars Cans

Get Best Price

+86 13030636622

marketing@pyspc.com

Contact Now

Product Description

100 Packs Per Minute Carton Packer for Juice Beverage Production Line

Product Overview

Applicable bottle types: square bottles, flat bottles, round bottles.

This case wrapping machine is widely used for secondary packaging of PET bottles, glass bottles or metal cans, and can replace cartoning machines and their ancillary equipment.

Key Specifications

Production capacity: 35-100 packs per minute (depending on packaging specifications)
Also known as: Carton Packer, Case Packer, Wrap Around Packer, and various other industry terms

Main Components Configuration

Component	Brand
PLC	Inovance, China
Servo motor and control system	Inovance, China
Upper configuration software	Ab Optix
Frequency converter	Inovance, China
Proximity electronic switch	SICK or equivalent brand
Air switch	Equivalent brand
Motor protector	Equivalent brand
Contactor	Equivalent brand
Button	Goto electrical or equivalent brand
Intermediate relay	Goto electrical or equivalent brand
Phase loss protector	Goto electrical or equivalent brand
Terminal	Phoenix
Ordinary motor reducer
Servo motor with reducer	Domestic precision reducer

Technical Parameters

Parameter	Specification
Production capacity	80 packs/minute (depending on bottle type and packaging method)
Carton dimensions after molding (mm)	Length: 150-420mm, Width: 130-350mm, Height: 100-335mm
Packing specifications	3×4, 3×5, 4×6, 2×3, 2×4 and other configurations (based on bottle size)
Product diameter	φ52-106mm for differential machines; φ48mm for non-differential machines
Product height	95mm-330mm
Equipment dimensions (mm)	15850×4050×2150 (requires minimum 3000mm height for lifting door)
Applicable container types	Cans, glass bottles, PET bottles, etc.
Conveyor elevation	1350mm±30mm (both box and bottle conveyors)
Equipment weight	Approximately 11000Kg
Operating air pressure	6bar
Air consumption	160L/min Max
Power requirements	380V AC 50HZ; 24V DC/AC
Installed power	30KW
Operating power	20KW

Carton Folding Process

4.1 Schematic diagram of inner flap forming process flow:

4.2 Schematic diagram of the outer tongue forming process flow:

Equipment Components & Process Flow

The equipment consists of:

Rack and frame structure
Bottle feeding conveyor system
Pressure control modules
Product grouping mechanism
Cardboard handling system (buffer, conveyor, supply transfer)
Forming sections (lower side, upper side)
Control systems (operation box and electrical cabinet)

The automated process involves:

Manual placement of cardboard on buffer conveyor
Vacuum separation and transfer of cardboard pieces
Product grouping and equal-distance bottle pushing
Combination of product with cardboard
Final forming through folding and spraying

Mechanism	Number of servos (sets)
Upper forming	2
Lower forming	2
Folding on both sides	4
Top capping	1
Forming transition zone	1
Bottle pusher	1
Grouping conveying	1
Cardboard climbing conveying	1
Product grouping	2
Cardboard transfer	2
Cardboard lifting and exchange	3

Product Images

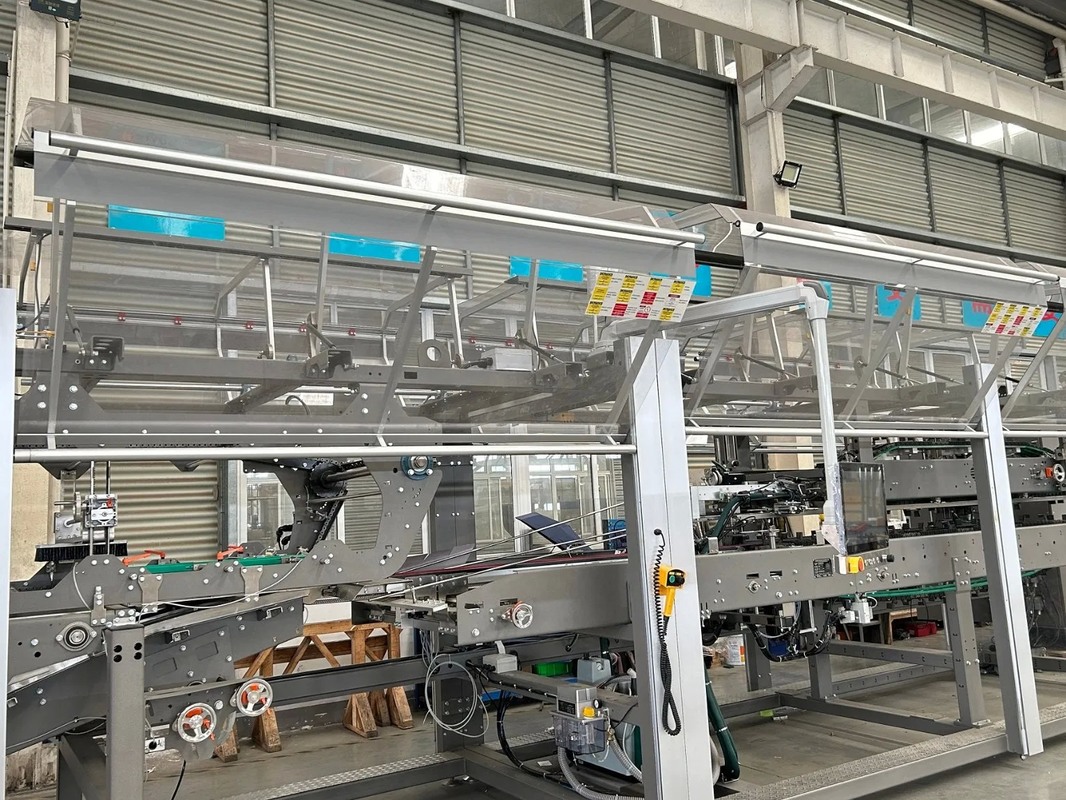

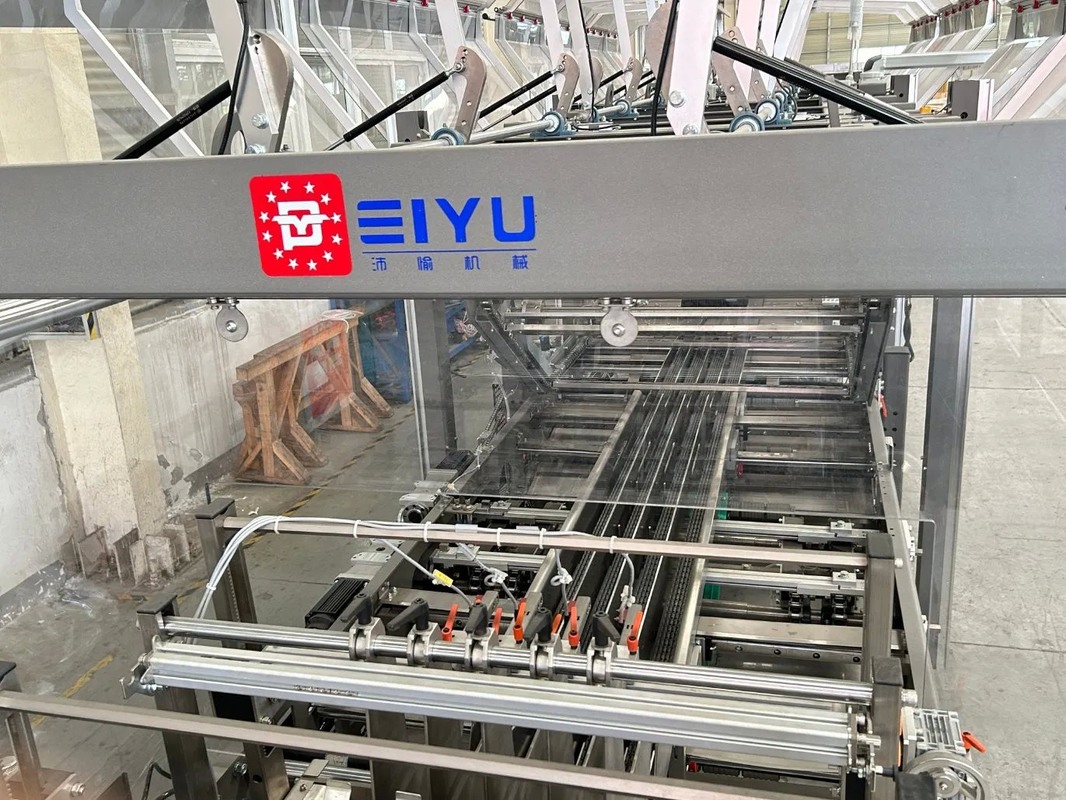

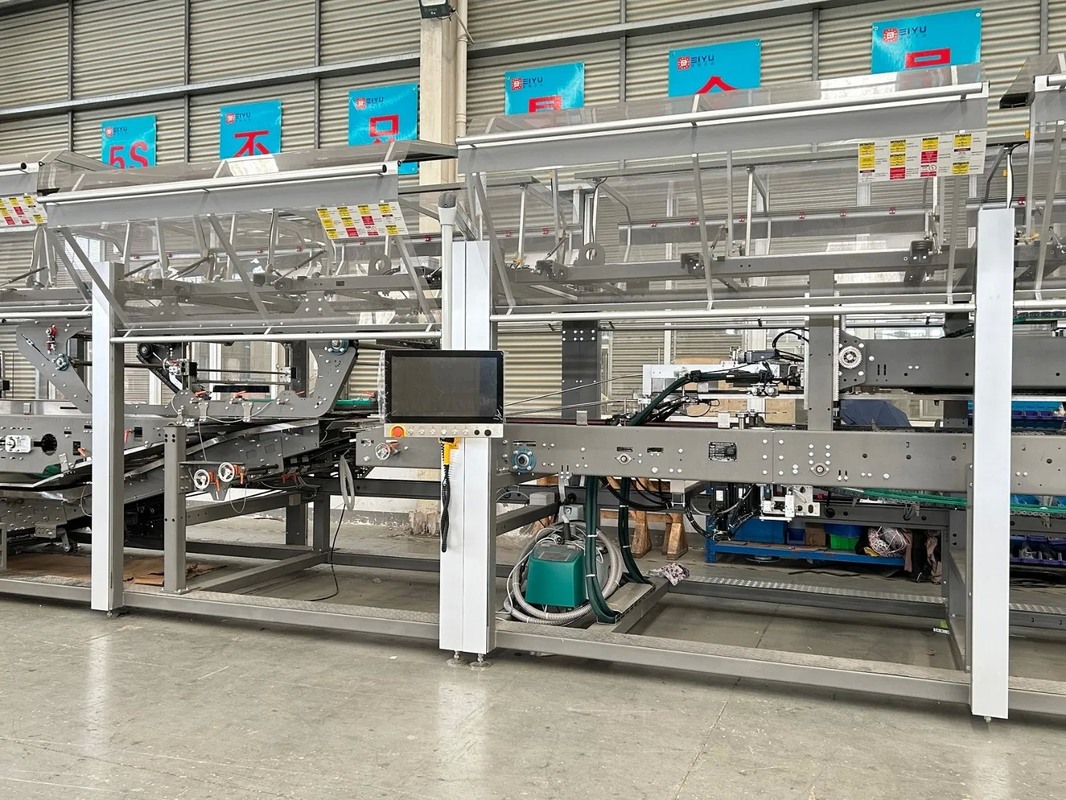

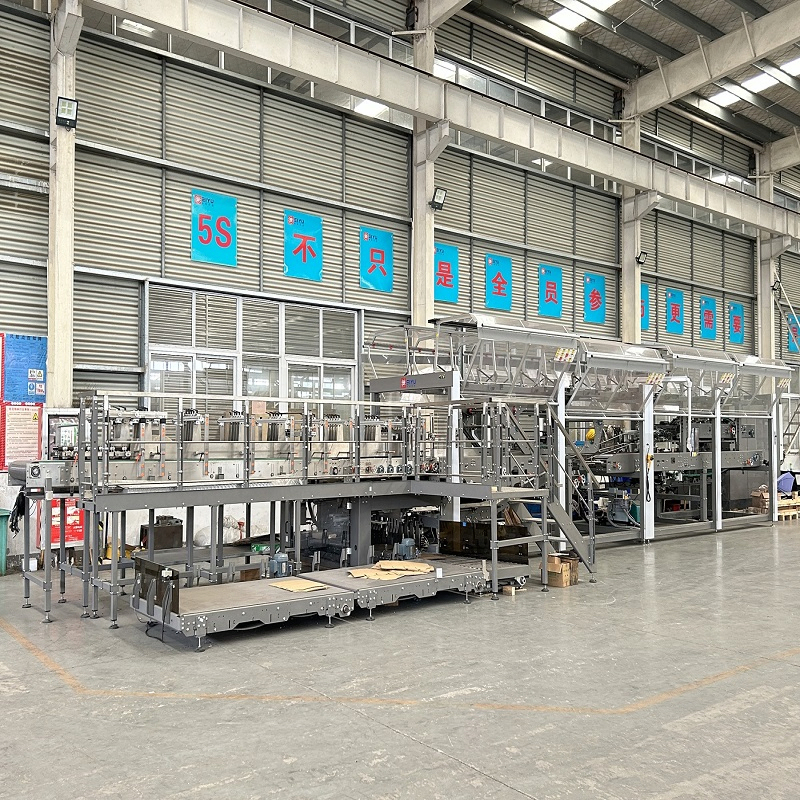

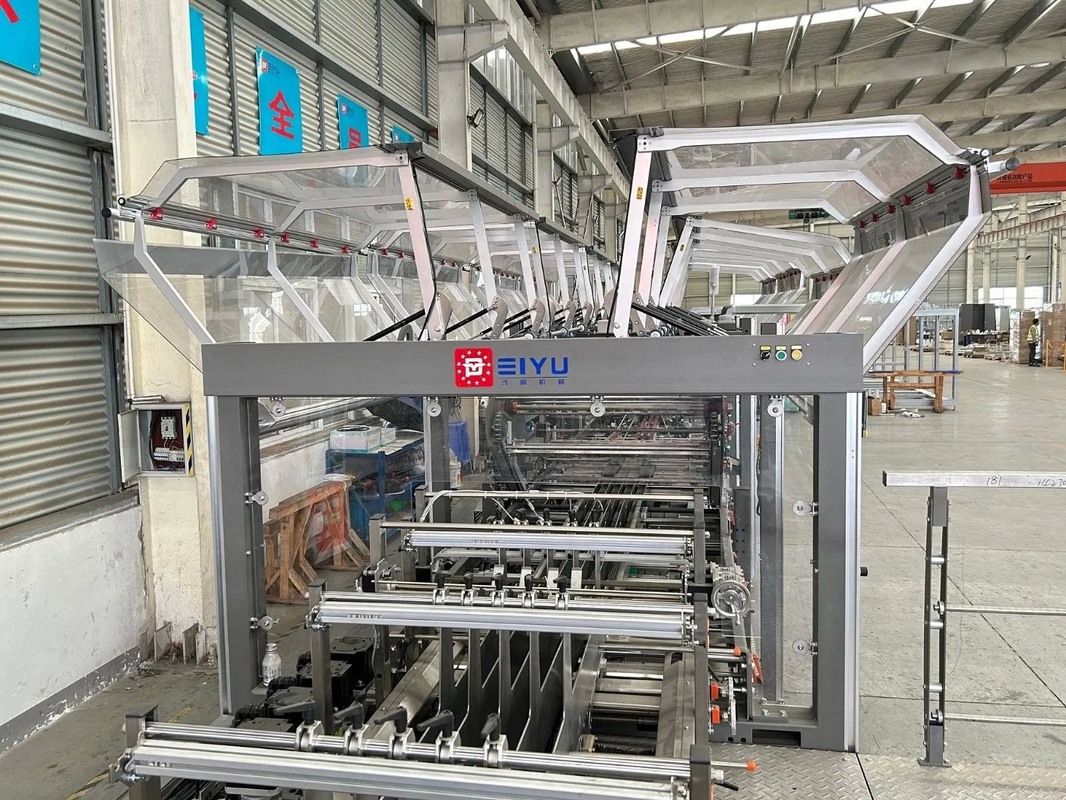

Automatic Wrap Around Case Packer for Beverage Production Line with Fully Wrapped Winding and No Pallet Design
