30 Cases Per Minute Fully Wrapped Winding Wrap Around Case Packer for Aseptic Packaging Line

30 Cases Per Minute Fully Wrapped Winding Wrap Around Case Packer for Aseptic Packaging Line

30 Cases Per Minute Wrap Around Case Packer

Fully Wrapped Winding Case Packer

Aseptic Packaging Line Carton Packer

Contact Us
Request A Quote
30 Cases Per Minute Fully Wrapped Winding Wrap Around Case Packer for Aseptic Packaging Line 30 Cases Per Minute Fully Wrapped Winding Wrap Around Case Packer for Aseptic Packaging Line 30 Cases Per Minute Fully Wrapped Winding Wrap Around Case Packer for Aseptic Packaging Line 30 Cases Per Minute Fully Wrapped Winding Wrap Around Case Packer for Aseptic Packaging Line 30 Cases Per Minute Fully Wrapped Winding Wrap Around Case Packer for Aseptic Packaging Line 30 Cases Per Minute Fully Wrapped Winding Wrap Around Case Packer for Aseptic Packaging Line
Product Details
Capacity:
20-100 Packs/Minute
Power:
380V 50Hz
Installed Power:
30KW
Operating Power:
20KW
Operating Air Pressure:
6bar
Air Consumption:
160L/min Max
Equipment Weight:
11000Kg
Standard Equipment Size:
15850mm×4050mm×2150mm
Box Conveyor Elevation:
1350mm±30mm
Bottle Conveyor Elevation:
1350mm±30mm
Product Height Range:
95mm~330mm
Product Diameter Range:
φ52mm-106mm
Carton Length Range:
150mm-420mm
Carton Width Range:
130mm-350mm
Carton Height Range:
100mm-335mm
Highlight:

30 Cases Per Minute Wrap Around Case Packer

,

Fully Wrapped Winding Case Packer

,

Aseptic Packaging Line Carton Packer

Payment & Shipping Terms
Minimum Order Quantity
1
Price
60000
RELATED PRODUCTS
Good price 60 Packs Per Minute Fully Wrapped Winding No Pallet Wrap Around Case Packer for Beverage and Food online

60 Packs Per Minute Fully Wrapped Winding No Pallet Wrap Around Case Packer for Beverage and Food

Get Best Price
Good price Automatic Wrap Around Carton Case Packer with 25 Cases/minute Speed, Stainless Steel 304 Construction, and AC 380V Power online

Automatic Wrap Around Carton Case Packer with 25 Cases/minute Speed, Stainless Steel 304 Construction, and AC 380V Power

Get Best Price
Good price CE ISO Certified Automatic Wrap Around Case Packer with Schneider Electrics for Stable Performance in Carton Packaging online

CE ISO Certified Automatic Wrap Around Case Packer with Schneider Electrics for Stable Performance in Carton Packaging

Get Best Price
Good price Stable Performance CE ISO Certified Wrap Around Case Packer with Touch Screen Control for Bottles Jars Cans online

Stable Performance CE ISO Certified Wrap Around Case Packer with Touch Screen Control for Bottles Jars Cans

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
30 Cases Per Minute Case Packer for Aseptic Packaging Line
Product Overview

This high-speed case packer is designed for secondary packaging of various container types including PET bottles, glass bottles, and metal cans, with a capacity of 30 cases per minute.

Key Features
  • Versatile compatibility: Handles square bottles, flat bottles, and round bottles
  • High-speed operation: 35-100 packs per minute depending on packaging specifications
  • Multiple applications: Can replace cartoning machines and ancillary equipment
Technical Specifications
Parameter Specification
Production Capacity 80 packs/minute (varies by bottle type and packaging method)
Carton Dimensions (L×W×H) L: 150-420mm, W: 130-350mm, H: 100-335mm
Equipment Dimensions 15850mm × 4050mm × 2150mm
Operating Power 30KW (installed), 20KW (operating)
Air Consumption 160L/min Max at 6bar
Component Configuration
Component Brand/Type
PLC Inovance, China
Servo Motor & Control System Inovance, China
Upper Configuration Software Ab Optix
Frequency Converter Inovance, China
Proximity Electronic Switch SICK or equivalent
Process Flow Diagrams
30 Cases Per Minute Fully Wrapped Winding Wrap Around Case Packer for Aseptic Packaging Line 0
Schematic diagram of inner flap forming process flow
30 Cases Per Minute Fully Wrapped Winding Wrap Around Case Packer for Aseptic Packaging Line 1
Schematic diagram of the outer tongue forming process flow
Equipment Components

The system comprises:

  • Rack and bottle feeding conveyor
  • Pressure control module conveyor
  • Product grouping and bottle pushing components
  • Cardboard buffer and conveyor sections
  • Folding and forming transition sections
  • Operation box and electrical cabinet

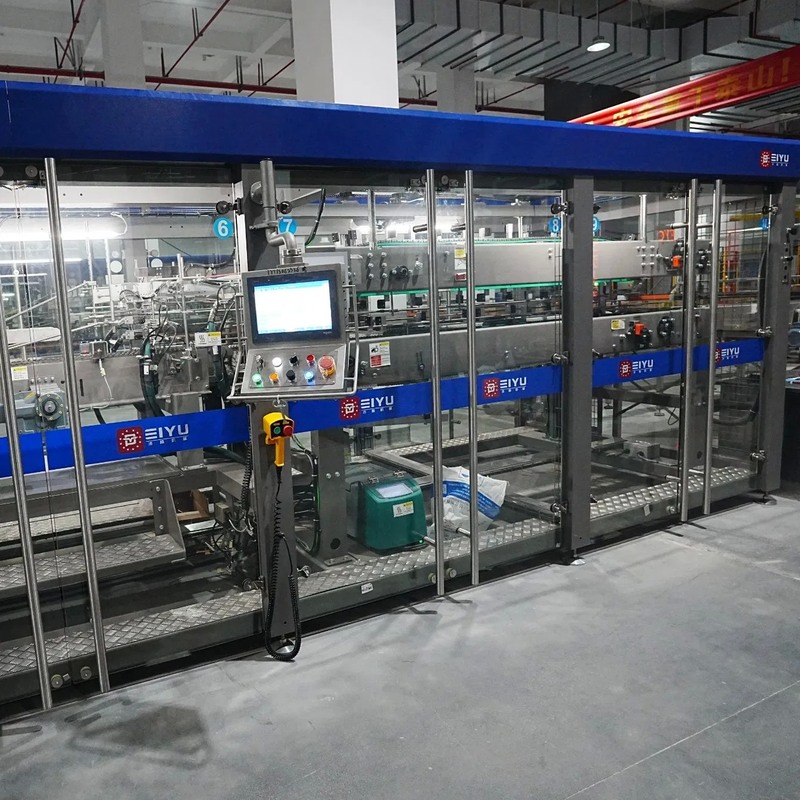

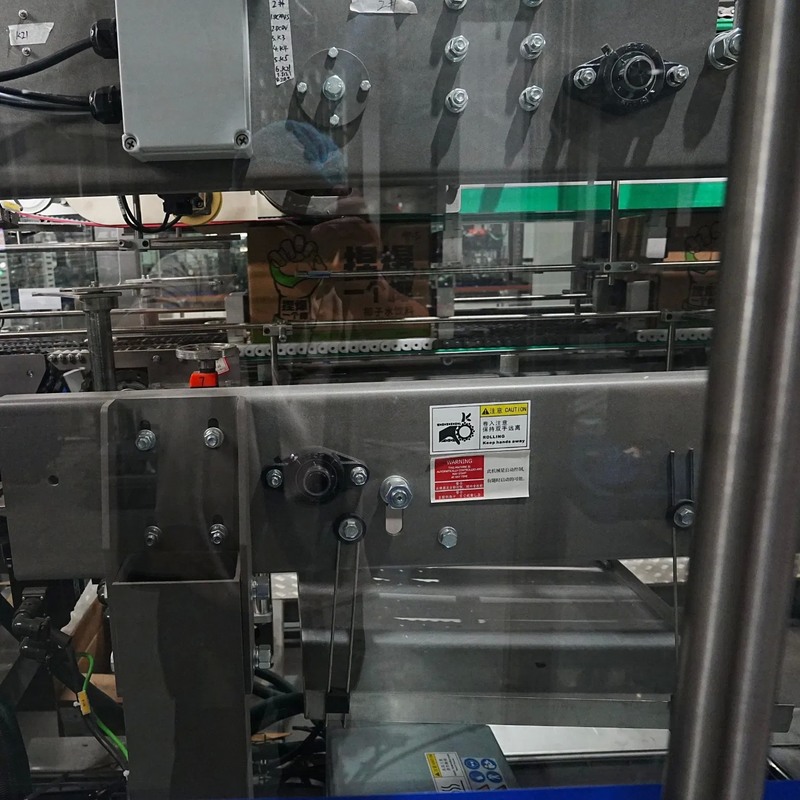

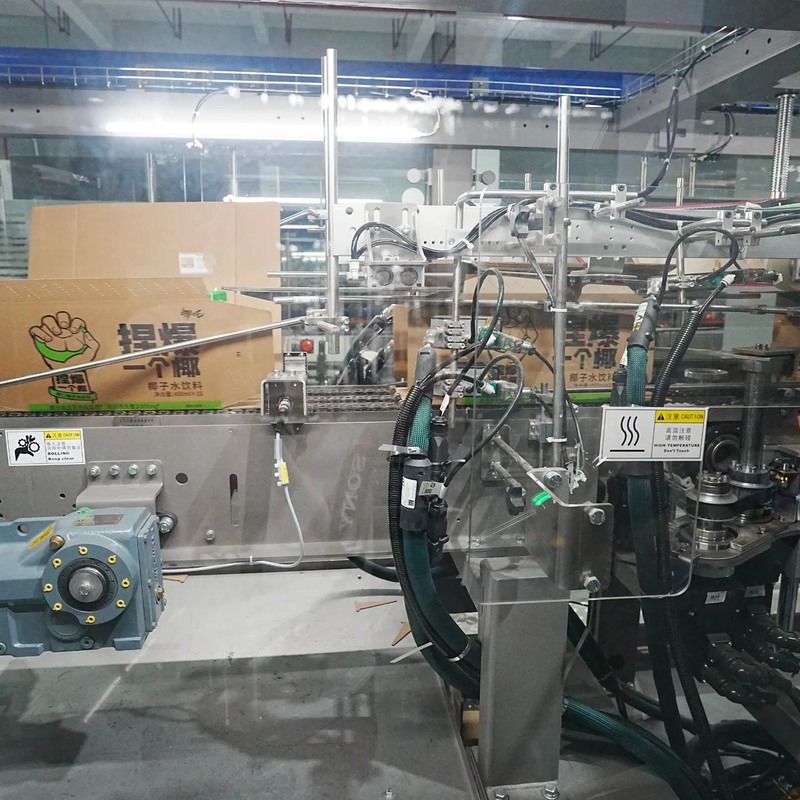

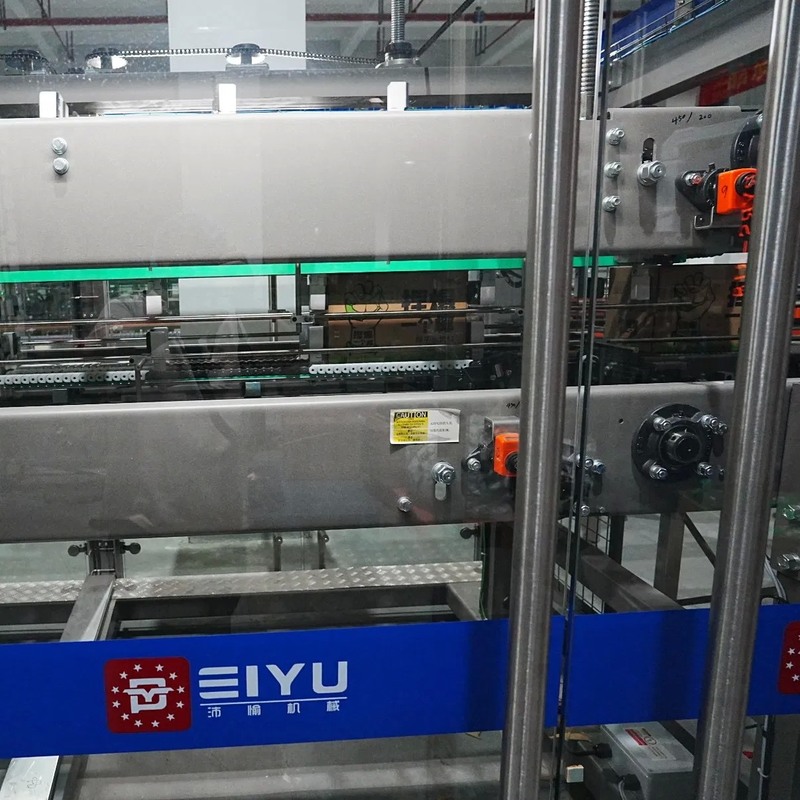

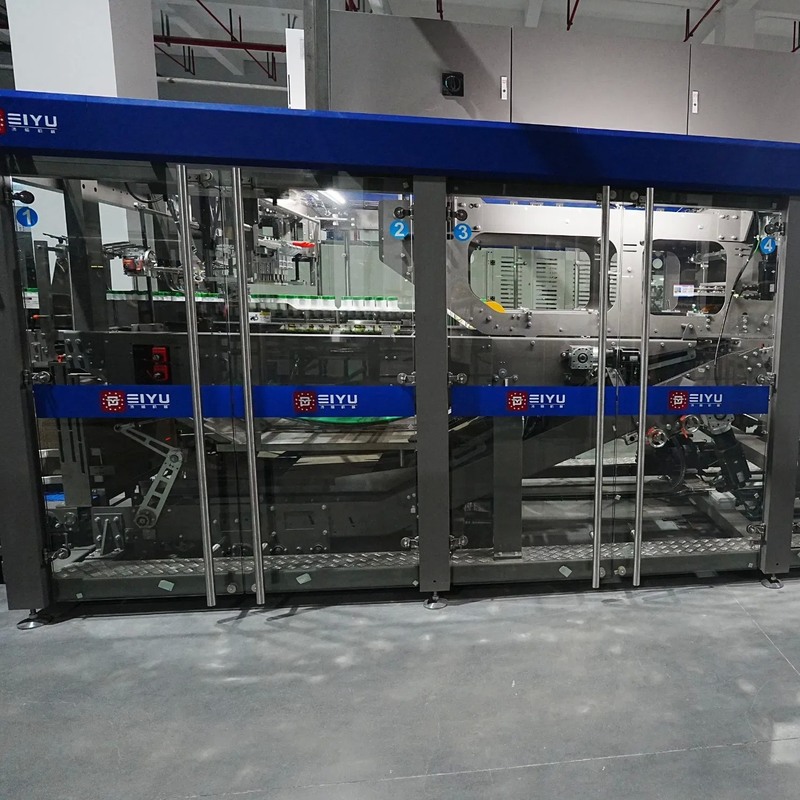

Product Images
30 Cases Per Minute Fully Wrapped Winding Wrap Around Case Packer for Aseptic Packaging Line 2
30 Cases Per Minute Fully Wrapped Winding Wrap Around Case Packer for Aseptic Packaging Line 3
Manufacturer Information

Peiyu Enterprise provides complete intelligent equipment solutions for liquid and solid product packaging, with extensive experience serving global brands across multiple industries including beverages, dairy, pharmaceuticals, and cosmetics.

The company operates modern production facilities with advanced equipment and maintains ISO9001 certification with European CE compliance.

Certifications
30 Cases Per Minute Fully Wrapped Winding Wrap Around Case Packer for Aseptic Packaging Line 4
Production Facility
30 Cases Per Minute Fully Wrapped Winding Wrap Around Case Packer for Aseptic Packaging Line 5
30 Cases Per Minute Fully Wrapped Winding Wrap Around Case Packer for Aseptic Packaging Line 6
