Fully Automatic Drop Type Wrap Around Case Packer with Mechanical Stretch for Chemical Industry

Product Details

Capacity:

20-100 Packs/Minute/Customized

Power:

380V 50Hz Customized

Applicable Container Size:

100g-3kg Customized

Production Capacity:

80 Packs/Minute

Carton Length Range:

150mm-420mm

Carton Width Range:

130mm-350mm

Carton Height Range:

100mm-335mm

Product Diameter Range:

φ48mm-106mm

Product Height Range:

95mm-330mm

Equipment Dimensions:

15850mm×4050mm×2150mm

Equipment Weight:

11000Kg

Operating Air Pressure:

6bar

Air Consumption:

160L/min Max

Working Voltage:

380V AC 50HZ; 24V DC/AC

Installed Power:

30KW

Operating Power:

20KW

Highlight:

Drop Type Wrap Around Case Packer

Mechanical Stretch Carton Packer

Chemical Wrap Around Packer

Payment & Shipping Terms

Minimum Order Quantity

Price

60000

60 Packs Per Minute Fully Wrapped Winding No Pallet Wrap Around Case Packer for Beverage and Food

Get Best Price

Automatic Wrap Around Carton Case Packer with 25 Cases/minute Speed, Stainless Steel 304 Construction, and AC 380V Power

Get Best Price

CE ISO Certified Automatic Wrap Around Case Packer with Schneider Electrics for Stable Performance in Carton Packaging

Get Best Price

Stable Performance CE ISO Certified Wrap Around Case Packer with Touch Screen Control for Bottles Jars Cans

Get Best Price

+86 13030636622

marketing@pyspc.com

Contact Now

Product Description

Fully Automatic Drop Type Carton Packaging Machine Wrap Around Packer

Product Overview

This fully automatic carton packaging machine is designed for efficient secondary packaging of various container types including PET bottles, glass bottles, and metal cans. It serves as a complete alternative to traditional cartoning machines and their ancillary equipment.

Key Features

Applicable bottle types: Square bottles, flat bottles, round bottles
Production capacity: 35-100 packs per minute (depending on packaging specifications)
Versatile applications: Also known as Case Packer, Wrap Around Packer, Cardboard Wraparound Case Packer, and more

Technical Specifications

Parameter	Specification
Production Capacity	80 packs/minute (varies by bottle type and packaging method)
Carton Dimensions (L×W×H)	L: 150-420mm, W: 130-350mm, H: 100-335mm
Product Diameter Range	φ48mm-106mm (varies by machine type)
Product Height Range	95mm-330mm
Equipment Dimensions	≈15850×4050×2150mm (requires 3000mm clearance height)
Power Requirements	380V AC 50HZ; 24V DC/AC, 30KW installed power

Main Components

Component	Brand/Type
PLC	Inovance, China
Servo Motor & Control System	Inovance, China
Upper Configuration Software	Ab Optix
Frequency Converter	Inovance, China
Proximity Electronic Switch	SICK or equivalent

Carton Folding Process

Inner flap forming process flow

Outer tongue forming process flow

Equipment Components & Process Flow

The machine consists of multiple integrated systems including bottle feeding conveyor, pressure control module, product grouping mechanism, cardboard handling system, and forming sections. The automated process involves precise coordination between cardboard handling and product placement for efficient wrapping.

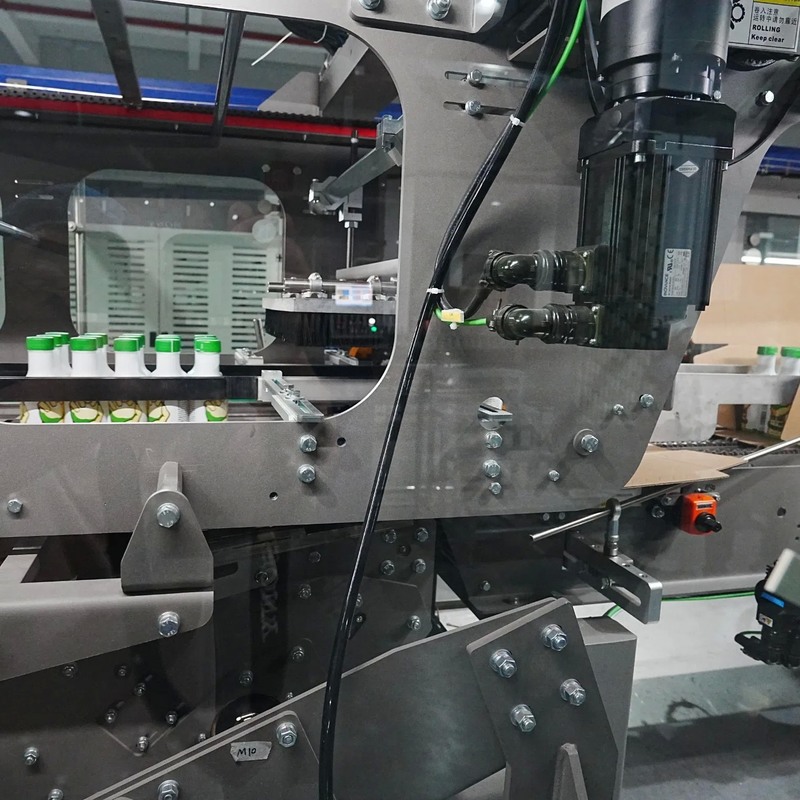

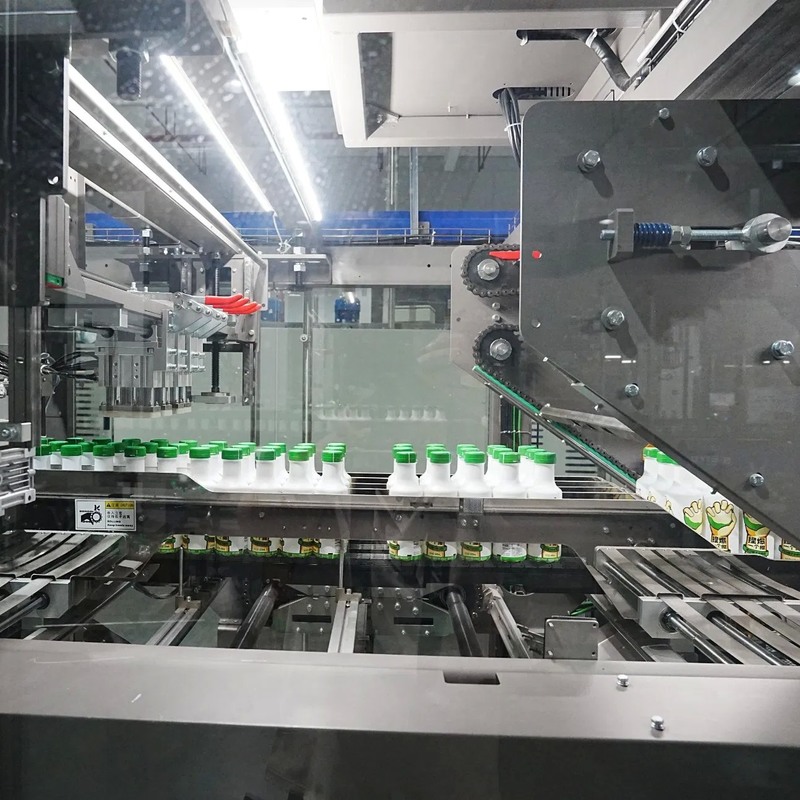

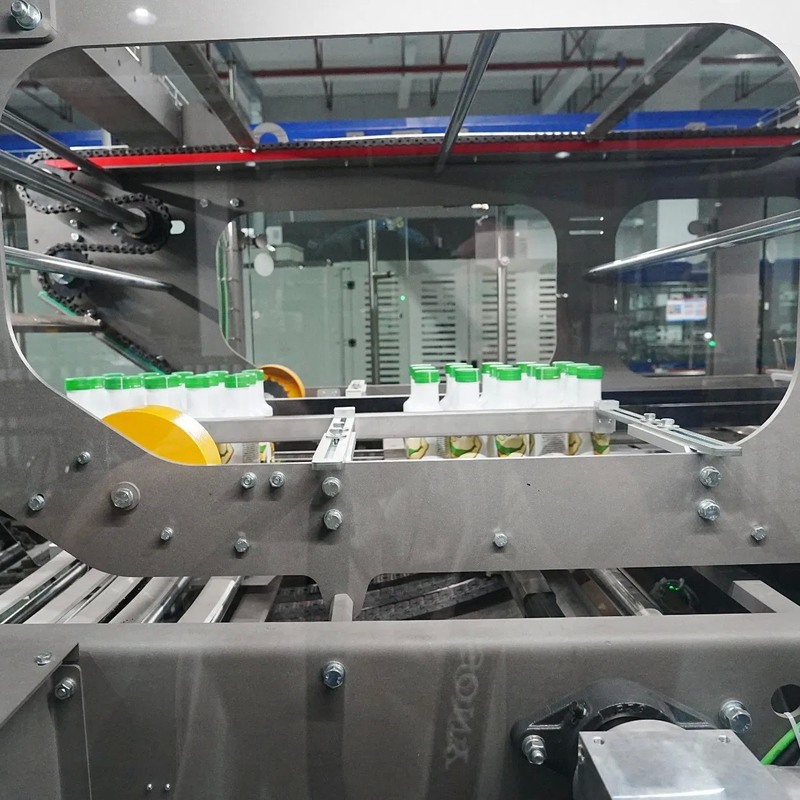

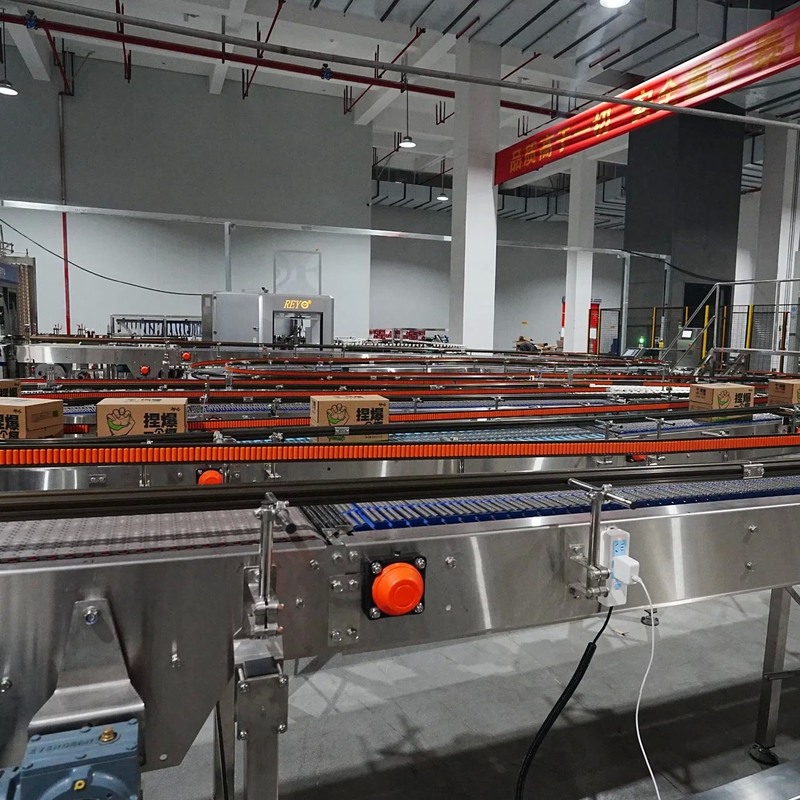

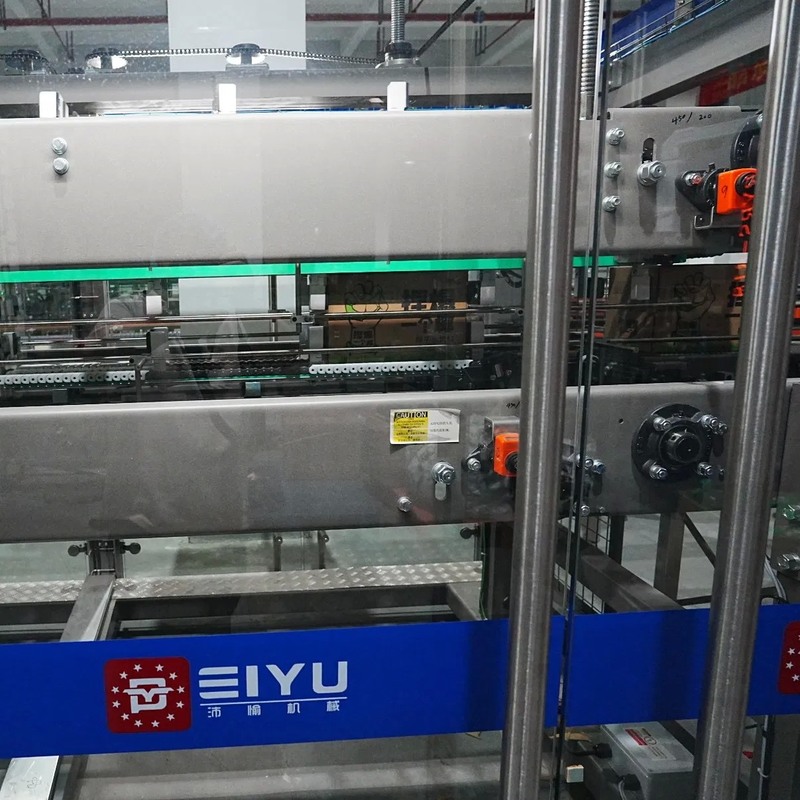

Detailed Photos

Manufacturer Information

Peiyu Enterprise provides complete intelligent packaging solutions with facilities in Shanghai, Anhui, and Jiangsu. Our product range covers various packaging production lines for liquid and solid products, serving global clients in food, beverage, pharmaceutical, and cosmetic industries.

With ISO9001 certification and European CE certification, we maintain partnerships with major international brands and export to multiple countries worldwide.

Certifications

Production Facility
