90 Packs Per Minute Carton Packer for Canned Beverage Line
Product Description
Applicable bottle types:
- Square bottles
- Flat bottles
- Round bottles
This case wrapping machine is widely used for secondary packaging of PET bottles, glass bottles or metal cans, and can replace cartoning machines and their ancillary equipment.
Capacity range:
35-100 packs per minute (depending on packaging specifications)
Also known as:
Carton Packer, Case Packer, Wrap Around Packer, Wrap Around Case Packer, Cardboard Wraparound Case Packer, One-piece carton packaging machine, and more.
Main Components Configuration
| Component | Brand |
|---|
| PLC | Inovance, China |
| Servo motor and control system | Inovance, China |
| Upper configuration software | Ab Optix |
| Frequency converter | Inovance, China |
| Proximity electronic switch | SICK or equivalent brand |
| Air switch | Equivalent brand |
| Motor protector | Equivalent brand |
| Contactor | Equivalent brand |
| Button | Goto electrical or equivalent brand |
| Intermediate relay | Goto electrical or equivalent brand |
| Phase loss protector | Goto electrical or equivalent brand |
| Terminal | Phoenix |
| Ordinary motor reducer | - |
| Servo motor with reducer | Domestic precision reducer |
Main Equipment Parameters
| Parameter | Specification |
|---|
| Production capacity | 80 packs/minute (depending on bottle type and packaging method) |
| Carton dimensions after molding (mm) | Length (L): 150-420mm
Width (W): 130-350mm
Height (H): 100-335mm |
| Packing specifications | 3×4, 3×5, 4×6, 2×3, 2×4 and other packaging methods |
| Product diameter | φ52-106mm for inlet multi-row differential machines; φ48mm for inlet non-differential machines |
| Product height | 95-330mm |
| Standard equipment size (mm) | 15850×4050×2150 (requires minimum 3000mm height for lifting door) |
| Applicable can types | Cans, glass bottles, PET, etc. |
| Box conveyor belt elevation | 1350mm ±30mm |
| Bottle conveyor belt elevation | 1350mm ±30mm |
| Equipment weight | Approximately 11000Kg |
| Operating air pressure | 6bar |
| Air consumption | 160L/min Max |
| Working voltage | 380V AC 50HZ; 24V DC/AC |
| Installed power | 30KW |
| Operating power | 20KW |
Carton Folding Diagram
4.1 Schematic diagram of inner flap forming process flow:
4.2 Schematic diagram of the outer tongue forming process flow:
Equipment Components and Process Flow
The equipment mainly consists of:
- Rack
- Bottle feeding conveyor
- Pressure control module conveyor
- Product grouping system
- Bottle pushing parts
- Cardboard buffer area
- Cardboard conveyor section
- Cardboard supply transfer parts
- Cardboard folding and forming transition section
- Operation box and electrical cabinet
The automated process involves cardboard placement, separation by vacuum suction cup, product grouping, and final wrapping through folding and spraying.
| Mechanism name | Number of servos (sets) |
|---|
| Upper forming | 2 |
| Lower forming | 2 |
| Folding on both sides | 4 |
| Top capping | 1 |
| Forming transition zone | 1 |
| Bottle pusher | 1 |
| Grouping conveying | 1 |
| Cardboard climbing conveying | 1 |
| Product grouping | 2 |
| Cardboard transfer | 2 |
| Cardboard lifting and exchange | 3 |

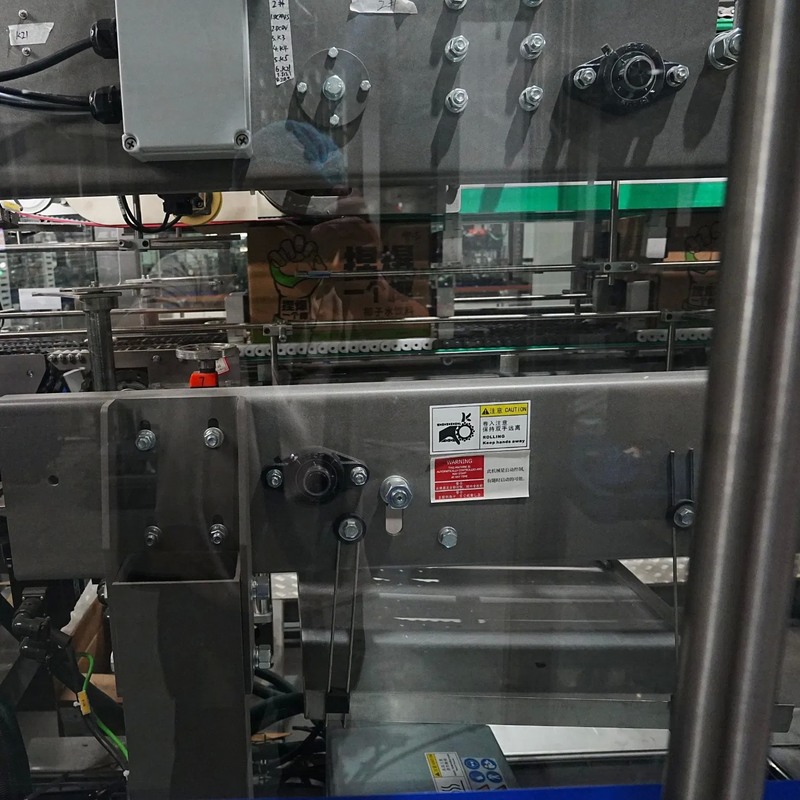

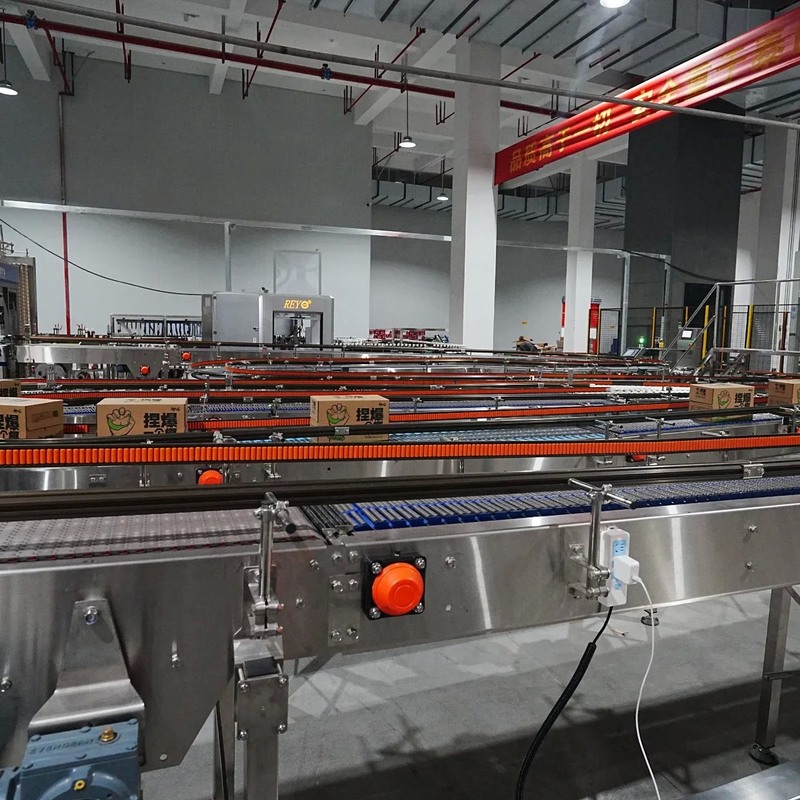

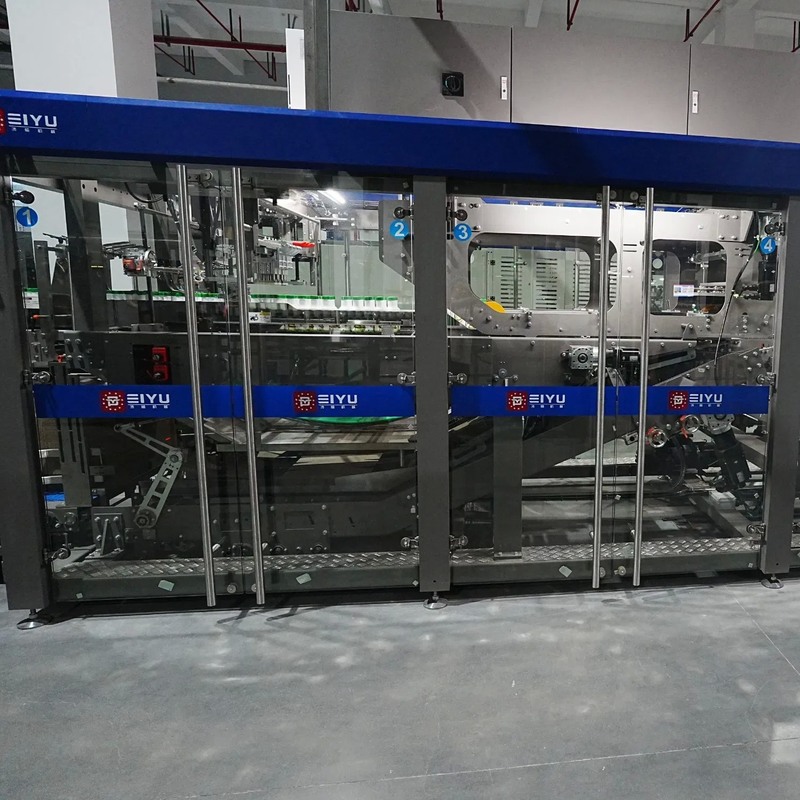

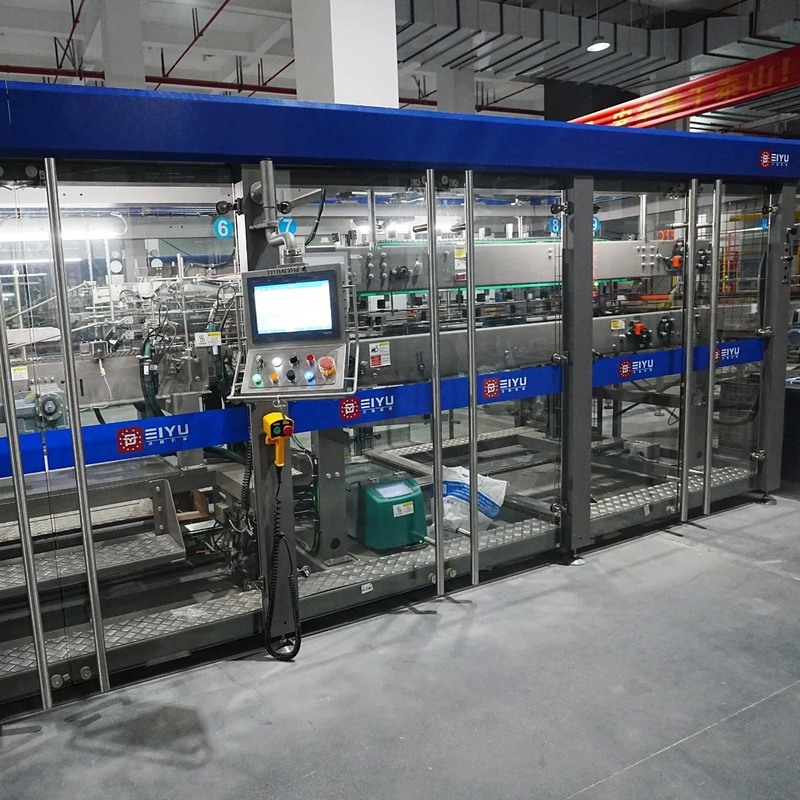

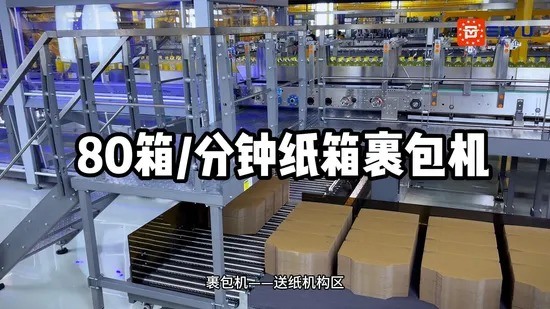

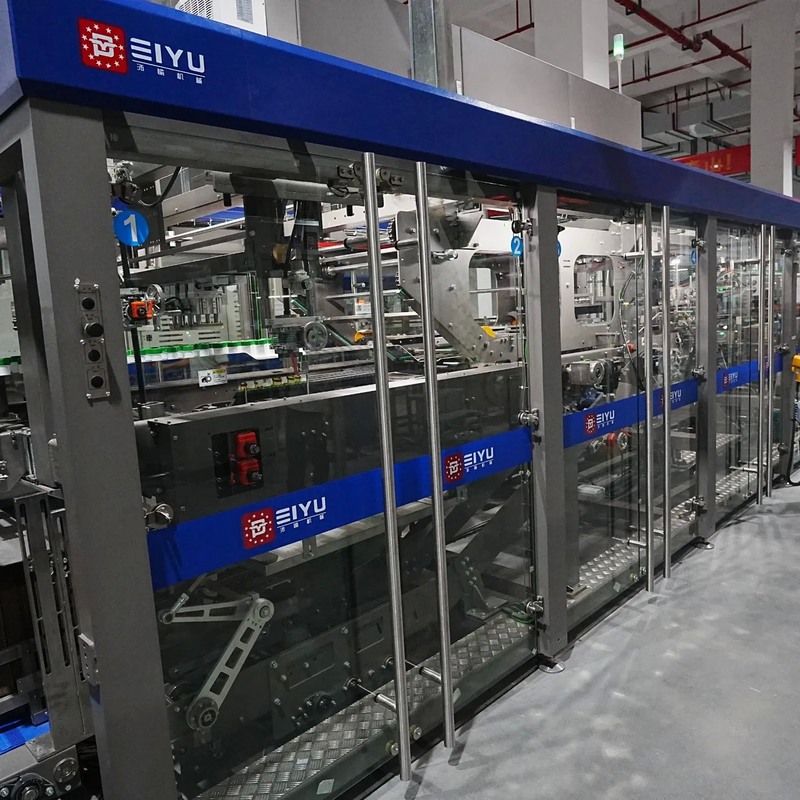

Detailed Photos
