30kw Fully Automatic Wrap Around Case Packer Cartoning Machine with 45box/Minute Capacity and Mechanical Stretch

30kw Fully Automatic Wrap Around Case Packer Cartoning Machine with 45box/Minute Capacity and Mechanical Stretch

45box/Minute Wrap Around Case Packer

100g-3kg Cartoning Machine

Mechanical Stretch Case Packer

Contact Us
Request A Quote
30kw Fully Automatic Wrap Around Case Packer Cartoning Machine with 45box/Minute Capacity and Mechanical Stretch 30kw Fully Automatic Wrap Around Case Packer Cartoning Machine with 45box/Minute Capacity and Mechanical Stretch 30kw Fully Automatic Wrap Around Case Packer Cartoning Machine with 45box/Minute Capacity and Mechanical Stretch 30kw Fully Automatic Wrap Around Case Packer Cartoning Machine with 45box/Minute Capacity and Mechanical Stretch 30kw Fully Automatic Wrap Around Case Packer Cartoning Machine with 45box/Minute Capacity and Mechanical Stretch 30kw Fully Automatic Wrap Around Case Packer Cartoning Machine with 45box/Minute Capacity and Mechanical Stretch
Product Details
Power:
30KW
Operating Power:
20KW
Capacity:
20-100 Packs/Minute
Equipment Weight:
11000Kg
Operating Air Pressure:
6bar
Air Consumption:
160L/min Max
Working Voltage:
380V AC 50HZ
Control Voltage:
24V DC/AC
Carton Length Range:
150mm-420mm
Carton Width Range:
130mm-350mm
Carton Height Range:
100mm-335mm
Product Height Range:
95mm-330mm
Product Diameter Range:
φ48mm-106mm
Box Conveyor Elevation:
1350mm±30mm
Bottle Conveyor Elevation:
1350mm±30mm
Highlight:

45box/Minute Wrap Around Case Packer

,

100g-3kg Cartoning Machine

,

Mechanical Stretch Case Packer

Payment & Shipping Terms
Minimum Order Quantity
1
Price
60000
RELATED PRODUCTS
Good price 60 Packs Per Minute Fully Wrapped Winding No Pallet Wrap Around Case Packer for Beverage and Food online

60 Packs Per Minute Fully Wrapped Winding No Pallet Wrap Around Case Packer for Beverage and Food

Get Best Price
Good price Automatic Wrap Around Carton Case Packer with 25 Cases/minute Speed, Stainless Steel 304 Construction, and AC 380V Power online

Automatic Wrap Around Carton Case Packer with 25 Cases/minute Speed, Stainless Steel 304 Construction, and AC 380V Power

Get Best Price
Good price CE ISO Certified Automatic Wrap Around Case Packer with Schneider Electrics for Stable Performance in Carton Packaging online

CE ISO Certified Automatic Wrap Around Case Packer with Schneider Electrics for Stable Performance in Carton Packaging

Get Best Price
Good price Stable Performance CE ISO Certified Wrap Around Case Packer with Touch Screen Control for Bottles Jars Cans online

Stable Performance CE ISO Certified Wrap Around Case Packer with Touch Screen Control for Bottles Jars Cans

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
30kw Tic Tac Toe Wrap Around Case Packer Cartoning Machine 45box/Minute
Product Overview

This high-performance wrap around case packer is designed for efficient secondary packaging of various container types including PET bottles, glass bottles, and metal cans. With a production capacity of 35-100 packs per minute, it serves as a versatile alternative to traditional cartoning machines.

Key Features
  • Handles multiple bottle types: square, flat, and round bottles
  • Production capacity: 35-100 packs per minute (depending on specifications)
  • Also known as: Carton Packer, Wrap Around Packer, Case Packer & Case Unpacker
  • Multi-functional design combining shrinking and carton wrapping capabilities
Technical Specifications
Parameter Specification
Production Capacity 80 packs/minute (varies by bottle type and packaging method)
Carton Dimensions (L×W×H) L: 150-420mm, W: 130-350mm, H: 100-335mm
Product Diameter Range 48-106mm (varies by machine type)
Product Height Range 95-330mm
Equipment Dimensions 15850×4050×2150mm (requires 3000mm clearance height)
Power Requirements 30KW installed power, 20KW operating power (380V AC 50HZ)
Component Configuration
Component Brand
PLC Inovance, China
Servo Motor & Control System Inovance, China
Upper Configuration Software Ab Optix
Frequency Converter Inovance, China
Proximity Electronic Switch SICK or equivalent
Process Flow Diagrams
30kw Fully Automatic Wrap Around Case Packer Cartoning Machine with 45box/Minute Capacity and Mechanical Stretch 0
Inner Flap Forming Process
30kw Fully Automatic Wrap Around Case Packer Cartoning Machine with 45box/Minute Capacity and Mechanical Stretch 1
Outer Tongue Forming Process
Equipment Components & Operation

The machine comprises multiple integrated systems including:

  • Bottle feeding conveyor system
  • Pressure control modules
  • Product grouping mechanism
  • Cardboard handling and forming sections
  • Automated folding and spraying systems
Servo System Configuration
Mechanism Number of Servos
Upper forming 2
Lower forming 2
Folding on both sides 4
Top capping 1

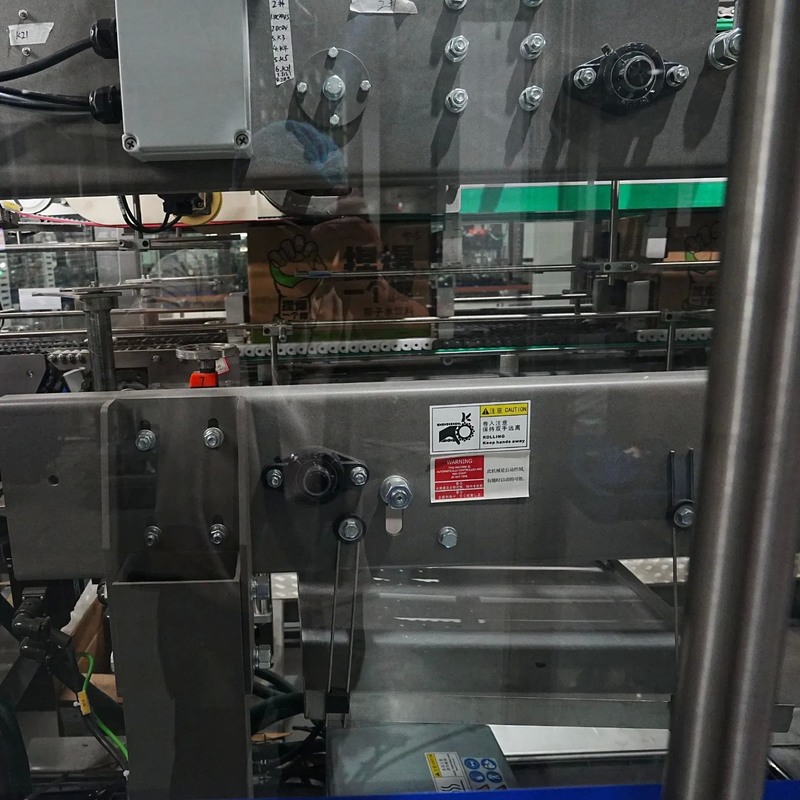

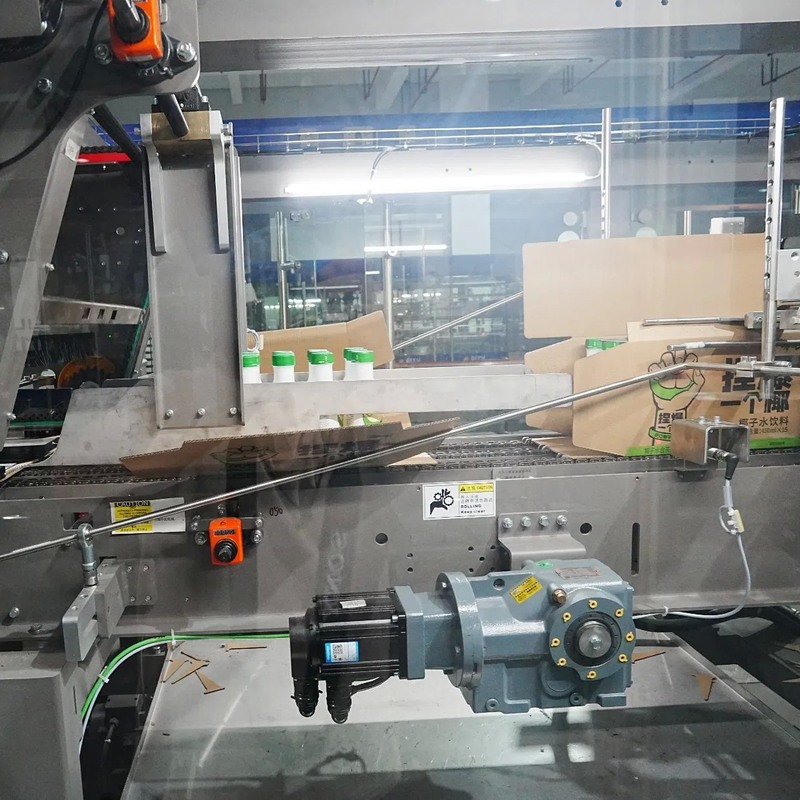

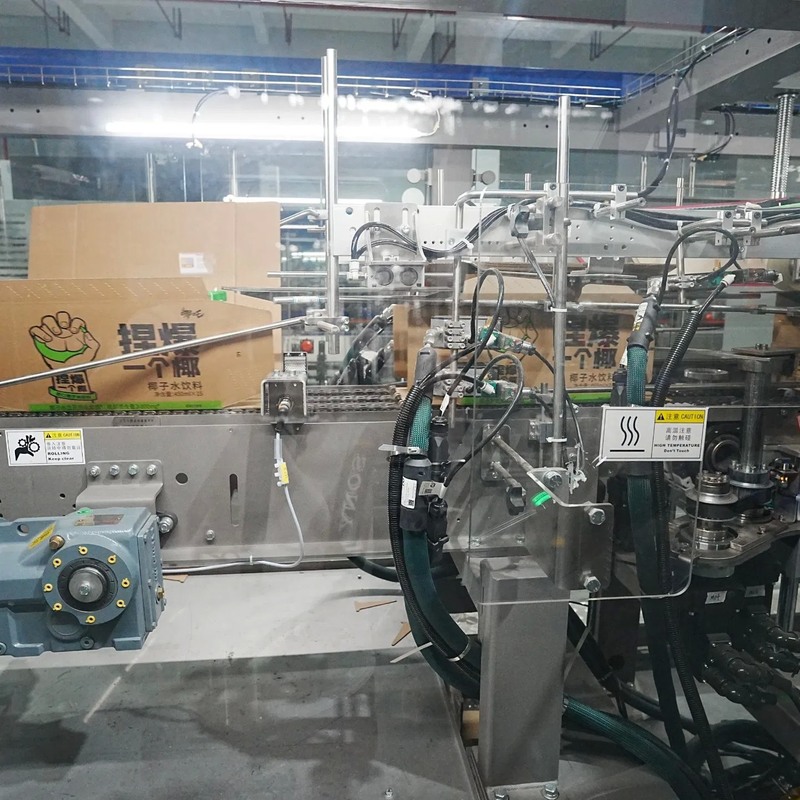

Detailed Photos
30kw Fully Automatic Wrap Around Case Packer Cartoning Machine with 45box/Minute Capacity and Mechanical Stretch 2
30kw Fully Automatic Wrap Around Case Packer Cartoning Machine with 45box/Minute Capacity and Mechanical Stretch 3
Manufacturer Profile

Peiyu Enterprise operates multiple manufacturing facilities across China, specializing in intelligent packaging equipment solutions. Our product range includes complete production lines for various packaging formats including aluminum cans, PET bottles, glass containers, and aseptic cartons.

With ISO9001 certification and European CE compliance, our equipment serves global clients across food, beverage, pharmaceutical, and cosmetic industries. Our advanced manufacturing facilities feature precision laser cutting, CNC machining centers, and comprehensive quality control systems.

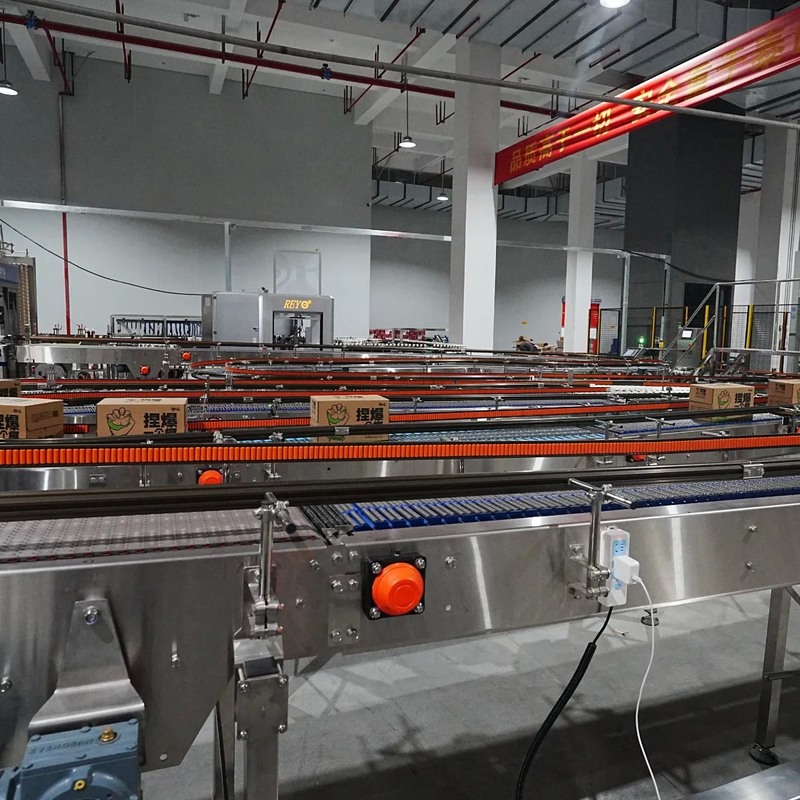

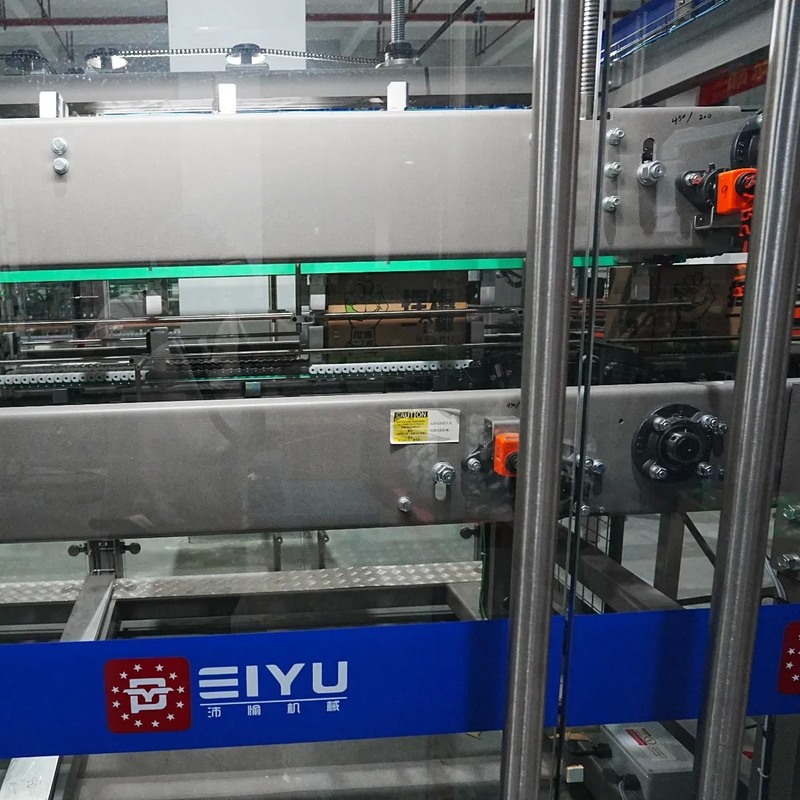

Certifications & Facilities
30kw Fully Automatic Wrap Around Case Packer Cartoning Machine with 45box/Minute Capacity and Mechanical Stretch 4
30kw Fully Automatic Wrap Around Case Packer Cartoning Machine with 45box/Minute Capacity and Mechanical Stretch 5
30kw Fully Automatic Wrap Around Case Packer Cartoning Machine with 45box/Minute Capacity and Mechanical Stretch 6
