220V Side Push Wrap Around Case Packer with 1000lmin Capacity for Beverage and Food Packaging

220V Side Push Wrap Around Case Packer with 1000lmin Capacity for Beverage and Food Packaging

220V Wrap Around Case Packer

Side Push Carton Packer

1000lmin Wrap Around Carton Packer

Contact Us
Request A Quote
220V Side Push Wrap Around Case Packer with 1000lmin Capacity for Beverage and Food Packaging 220V Side Push Wrap Around Case Packer with 1000lmin Capacity for Beverage and Food Packaging 220V Side Push Wrap Around Case Packer with 1000lmin Capacity for Beverage and Food Packaging 220V Side Push Wrap Around Case Packer with 1000lmin Capacity for Beverage and Food Packaging 220V Side Push Wrap Around Case Packer with 1000lmin Capacity for Beverage and Food Packaging 220V Side Push Wrap Around Case Packer with 1000lmin Capacity for Beverage and Food Packaging
Product Details
Capacity:
20-100 Packs/Minute
Power:
380V 50Hz
Installed Power:
30KW
Operating Power:
20KW
Operating Air Pressure:
6bar
Air Consumption:
160L/min Max
Working Voltage:
380V AC 50HZ; 24V DC/AC
Equipment Weight:
11000Kg
Standard Equipment Size:
15850mm×4050mm×2150mm
Box Conveyor Elevation:
1350mm±30mm
Bottle Conveyor Elevation:
1350mm±30mm
Product Height Range:
95mm~330mm
Product Diameter Range:
φ52mm-106mm
Carton Length Range:
150mm-420mm
Carton Width Range:
130mm-350mm
Highlight:

220V Wrap Around Case Packer

,

Side Push Carton Packer

,

1000lmin Wrap Around Carton Packer

Payment & Shipping Terms
Minimum Order Quantity
1
Price
60000
RELATED PRODUCTS
Good price 60 Packs Per Minute Fully Wrapped Winding No Pallet Wrap Around Case Packer for Beverage and Food online

60 Packs Per Minute Fully Wrapped Winding No Pallet Wrap Around Case Packer for Beverage and Food

Get Best Price
Good price Automatic Wrap Around Carton Case Packer with 25 Cases/minute Speed, Stainless Steel 304 Construction, and AC 380V Power online

Automatic Wrap Around Carton Case Packer with 25 Cases/minute Speed, Stainless Steel 304 Construction, and AC 380V Power

Get Best Price
Good price CE ISO Certified Automatic Wrap Around Case Packer with Schneider Electrics for Stable Performance in Carton Packaging online

CE ISO Certified Automatic Wrap Around Case Packer with Schneider Electrics for Stable Performance in Carton Packaging

Get Best Price
Good price Stable Performance CE ISO Certified Wrap Around Case Packer with Touch Screen Control for Bottles Jars Cans online

Stable Performance CE ISO Certified Wrap Around Case Packer with Touch Screen Control for Bottles Jars Cans

Get Best Price
Contact Us
+86 13030636622
marketing@pyspc.com
Contact Now
Product Description
220V Side Push Wrap Around Cartoner Packer Machine 1000l/min
Product Overview

Applicable bottle types: square bottles, flat bottles, round bottles.

This wrap around case packer is widely used for secondary packaging of PET bottles, glass bottles or metal cans, and can replace cartoning machines and their ancillary equipment.

Production capacity: 35-100 packs per minute (depending on packaging specifications)

Alternative Names
  • Carton Packer
  • Case Packer
  • Wrap Around Packer
  • Cardboard Wraparound Case Packer
  • Multi-Function Cartoning Carton Boxes Packer
Main Components Configuration
Component Brand
PLC Inovance, China
Servo motor and control system Inovance, China
Upper configuration software Ab Optix
Frequency converter Inovance, China
Proximity electronic switch SICK or equivalent brand
Technical Specifications
Parameter Value
Production capacity 80 packs/minute (depending on bottle type and packaging method)
Carton dimensions (L×W×H) L: 150-420mm, W: 130-350mm, H: 100-335mm
Product diameter φ48mm-106mm
Product height 95mm-330mm
Equipment dimensions (L×W×H) 15850mm×4050mm×2150mm
Equipment weight 11000Kg
Operating air pressure 6bar
Working voltage 380V AC 50HZ; 24V DC/AC
Carton Folding Process
220V Side Push Wrap Around Case Packer with 1000lmin Capacity for Beverage and Food Packaging 0
220V Side Push Wrap Around Case Packer with 1000lmin Capacity for Beverage and Food Packaging 1
Equipment Components & Process Flow

The machine consists of rack, bottle feeding conveyor, pressure control module conveyor, product grouping system, bottle pushing parts, cardboard buffer area, cardboard conveyor section, cardboard supply transfer parts, cardboard slope conveyor section, cardboard folding and forming transition section, lower/upper side spraying and forming sections, operation box and electrical cabinet.

Servo Mechanism Configuration
Mechanism Number of servos
Upper forming 2
Lower forming 2
Folding on both sides 4
Top capping 1
Product Images

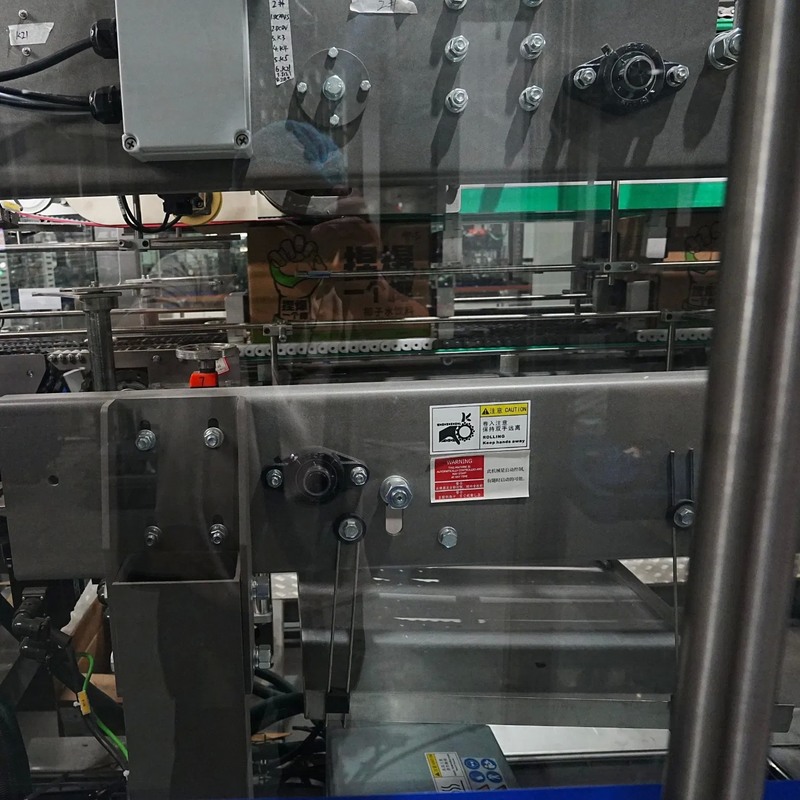

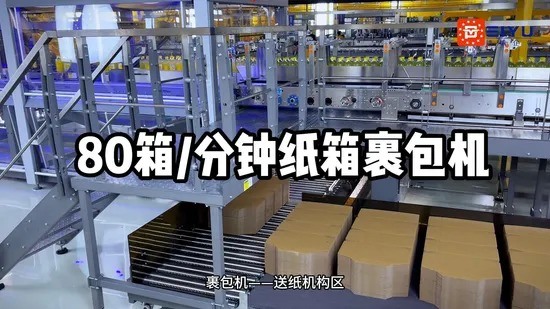

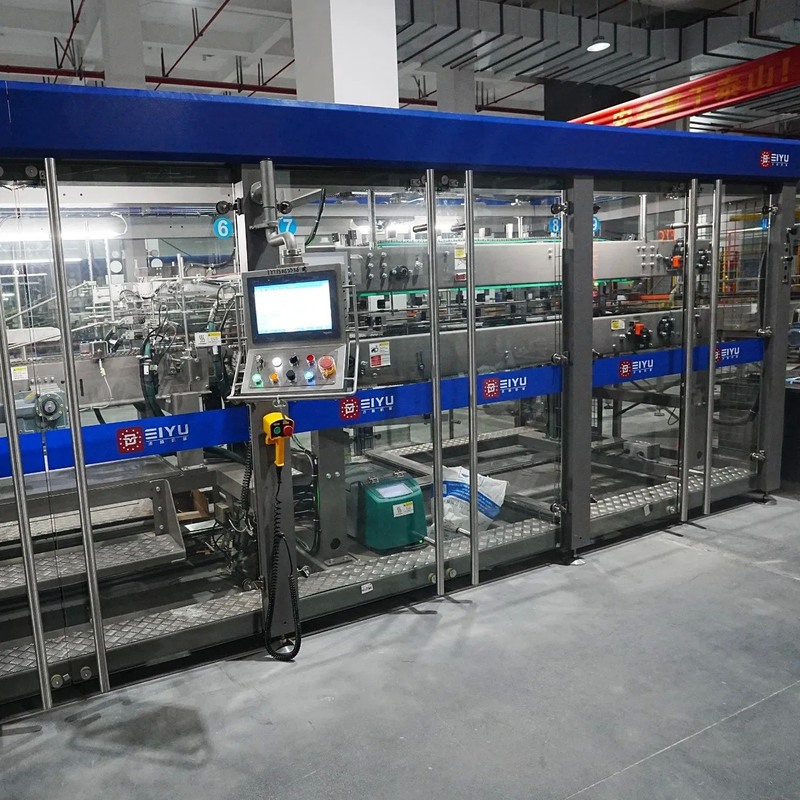

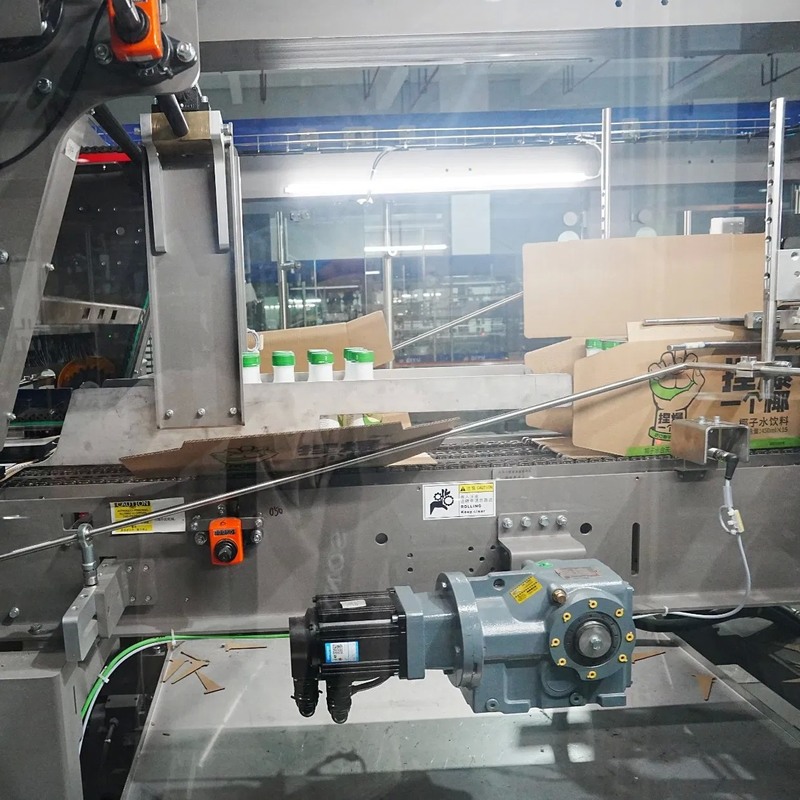

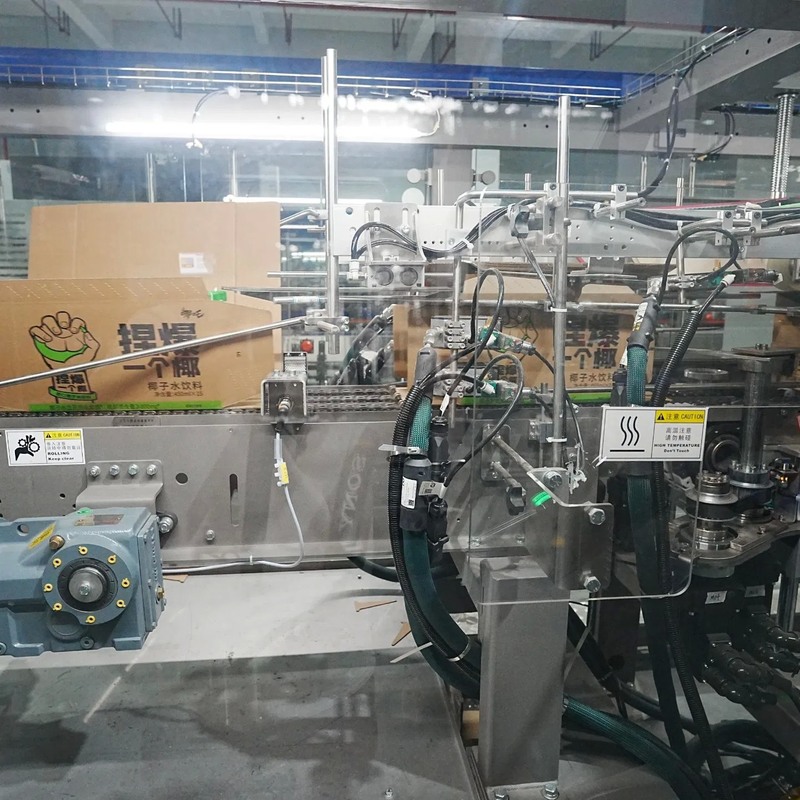

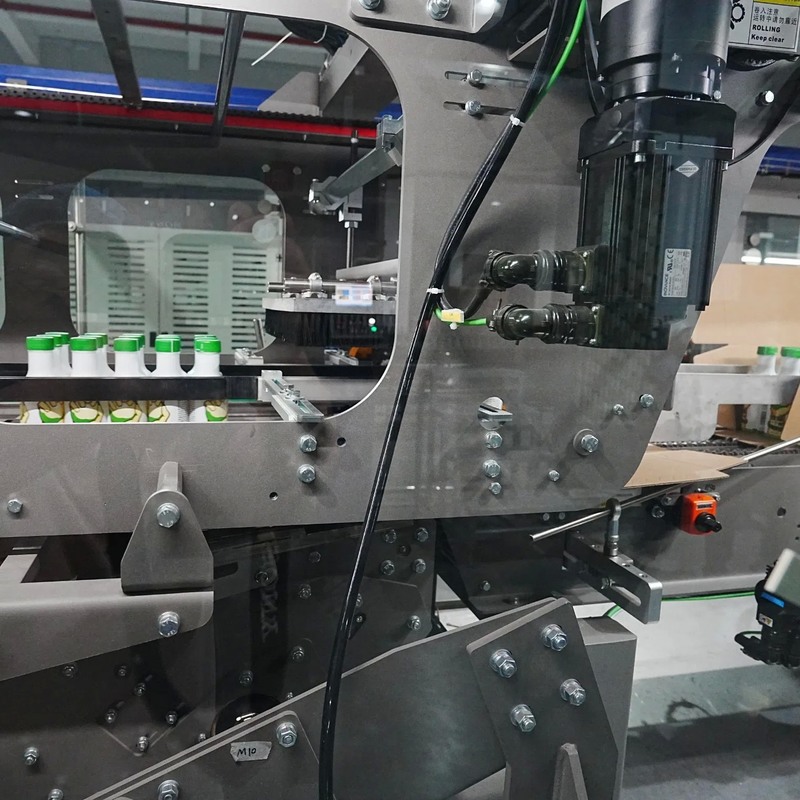

220V Side Push Wrap Around Case Packer with 1000lmin Capacity for Beverage and Food Packaging 2
220V Side Push Wrap Around Case Packer with 1000lmin Capacity for Beverage and Food Packaging 3
Manufacturer Information

Peiyu Enterprise provides complete intelligent equipment solutions for liquid and solid product packaging, including flexible packaging, cans, PET bottles, glass bottles, and aseptic cartons production lines.

With modern production facilities covering 60,000 square meters and advanced processing equipment, we serve global clients including Mars, Danone, Yili Group, and Unilever.

220V Side Push Wrap Around Case Packer with 1000lmin Capacity for Beverage and Food Packaging 4
Certifications
220V Side Push Wrap Around Case Packer with 1000lmin Capacity for Beverage and Food Packaging 5
Workshop & Components
220V Side Push Wrap Around Case Packer with 1000lmin Capacity for Beverage and Food Packaging 6
220V Side Push Wrap Around Case Packer with 1000lmin Capacity for Beverage and Food Packaging 7
220V Side Push Wrap Around Case Packer with 1000lmin Capacity for Beverage and Food Packaging 8
