Name: Automatic Wrap Around Carton Case Packer with 25 Cases/minute Speed, Stainless Steel 304 Construction, and AC 380V Power
Brand: Shanghai Peiyu Packaging Technology Co.,Ltd.
SKU: SPCWM.NA1H
Availability: InStock

Home > Products > Wrap Around Case Packer >

Automatic Wrap Around Carton Case Packer with 25 Cases/minute Speed, Stainless Steel 304 Construction, and AC 380V Power

25 Cases/minute Wrap Around Case Packer

Stainless Steel 304 Wrap Around Carton Case Packer

AC 380V Wrap Around Cartoner

Place of Origin:

China

Brand Name:

Peiyu

Certification:

CE,ISO9001:2008,High-tech enterprise

Model Number:

SPCWM.NA1H

Request A Quote

Product Details

Model NO.:

SPCWM. NA1

Driven Type:

Electric

Automatic Grade:

Automatic

Inclusion Degree:

Full Wrap Around

Structure:

Wrap Around

Film Frame Structure:

Pre Tension

Electrics:

Schneider

Material:

Stainless Steel

Production Capacity:

100 Sets Per Year

Machine Capacity:

25 Cases/minute

Gluing Time:

<0.7 Second

Drying Time:

>2 Second

Equipment Dimensions:

6700mm × 4500mm × 2700mm

Mechanical Weight:

3000Kg

Power Supply:

AC 380V, 3P, 50Hz

Highlight:

25 Cases/minute Wrap Around Case Packer

Stainless Steel 304 Wrap Around Carton Case Packer

AC 380V Wrap Around Cartoner

Payment & Shipping Terms

Minimum Order Quantity

Price

Individual quotation according to different requirements

Packaging Details

The packaging uses new, sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, and suitable for land and sea transportation and overall lifting.

Delivery Time

10-20 workdays

Payment Terms

L/C,T/T

Supply Ability

300 pcs per month

marketing@pyspc.com

Contact Now

Product Description

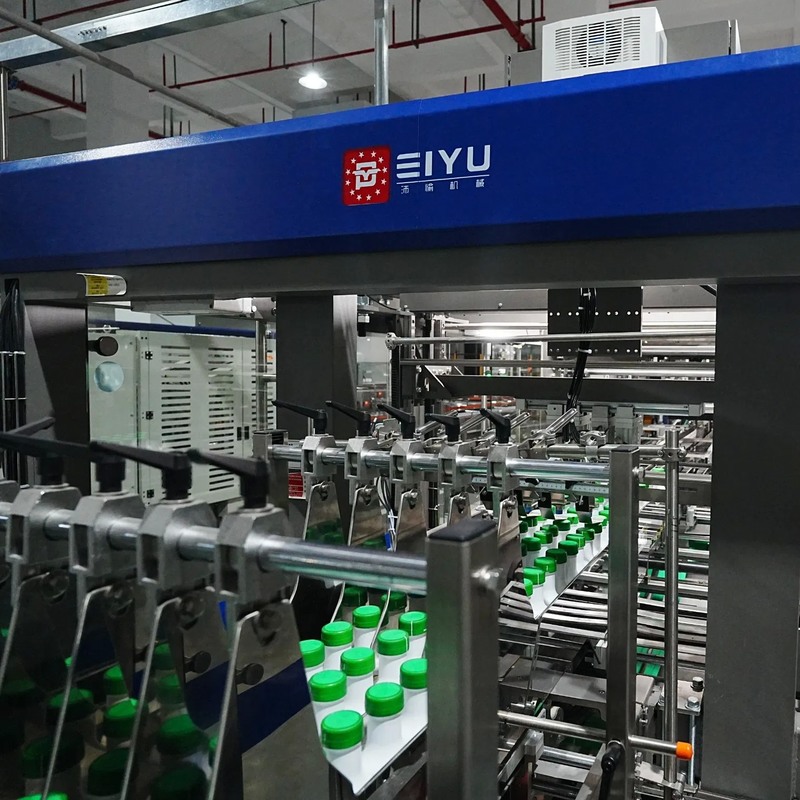

Wrap Around Carton Case Packer

Product Description

High-performance carton case packing machine with premium construction and advanced features for efficient packaging operations.

Conveyor made of stainless steel 304
Machine frame and base constructed from A3 steel with stainless steel 304 contact parts
Painted according to supplier's standard color specifications
User-friendly control panel with touch screen interface

Technical Specifications

Capacity: 25 cases/minute (based on 500ml bottle)
Premium Nordson (USA) hot-melt glue system
Fast processing: <0.7 seconds from gluing to sealing
Secure drying: >2 seconds drying time after sealing
Gentle handling: No damage to product packaging during operation
Reliable sealing: Secure carton closure without loosening

Product Parameters

Applicable bottles	New glass bottles, recycled bottles, PET round bottles, PET square bottles, cans, etc.
Capacity	20-25ctns/min
Arrangement state	Bottle/carton
Box type	Horizontal corrugated box
Equipment dimensions	6700mm (L) * 4500mm (W) * 2700mm (H)
Mechanical weight	3000Kg
Bottle feeding/discharging conveyor belt	1) Chain form: stainless steel chain 2) Bottle conveyor height: 1100±50mm 3) Box conveyor height: 1100±50mm
Power supply	1) AC 380V, 3P, 50Hz 2) Control: AC220V, 1P, 50Hz & DC24V
Air source	1) Pressure: 4-5Kg/cm² 2) Consumption: 150NL/MIN

Certifications & Components

Manufacturing & Applications
